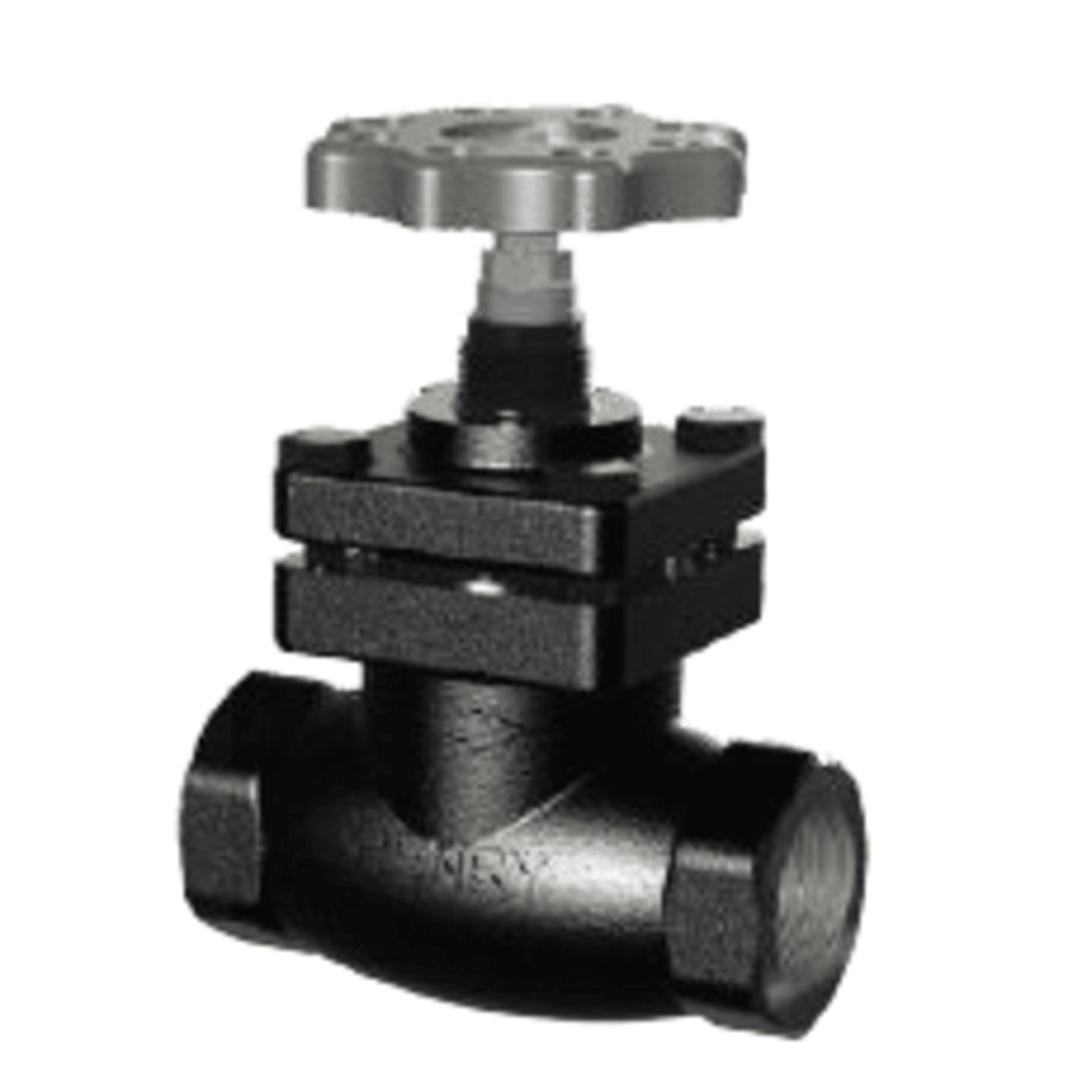

Henry Shut-Off Valve, Angle Handwheel, 3/4" x 3/4" FPT - 19.05mm

The Henry 380G is a 3/4" FPT angle handwheel shut-off valve designed for use in industrial refrigeration systems, particularly those using ammonia and other compatible refrigerants. Here's a detailed overview:

?? Technical Specifications

• Model: 380G
• Connection Size: 3/4" FPT x 3/4" FPT (Female Pipe Thread)
• Valve Type: Angle shut-off valve with handwheel
• Material:
  • Body & Bonnet: Ductile iron
  • Stem: Stainless steel
  • Seal Cap: Molded plastic
• Seat: Non-rotating, self-aligning swivel seat disc with fully retained Teflon seat ring
• Maximum Cold Working Pressure: 400 PSI (27.6 bar)
• Operating Temperature Range: -20°F to +275°F (-29°C to +135°C)
• Design Features:
  • Backseating stem allows for repacking under pressure
  • Threaded bonnet accepts Henry seal caps
  • Protective painted finish for corrosion resistance

?? Applications

• Suitable for:
  • Ammonia (NH?)
  • HCFC and HFC refrigerants
  • Associated oils
  • Other non-corrosive industrial fluids

This valve is a cost-effective alternative to flanged designs and is widely used for manual flow control and isolation in refrigeration piping systems
