24.0030BPS - Monarch - Oil Nozzlemon

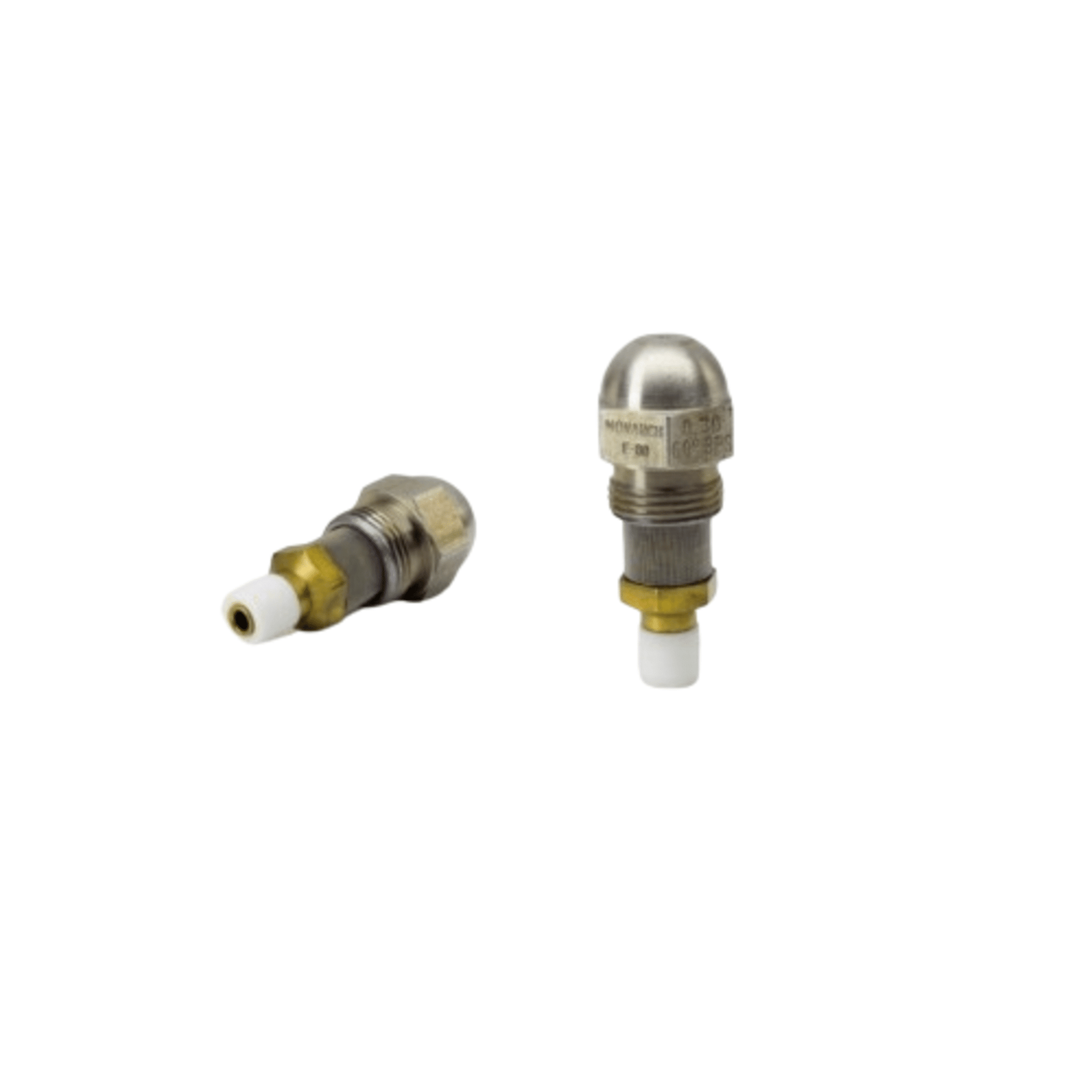

The Monarch 24.00 GPH 30° BPS (Bypass) oil nozzle is a specialized component used in oil burners to regulate fuel flow and spray pattern. This nozzle allows for variable orifice flow rates by bypassing fluid from the nozzle's swirl chamber, with the flow regulated by controlling the bypass line pressure.

Key Features:

• Flow Rate: 24.00 gallons per hour (GPH)

• Spray Angle: 30°

• Design: Bypass nozzle with a brass body, Monel strainer screen, and Viton O-ring

• Operating Pressure: Designed and tested for operation at 100 psi on #2 fuel oil

• Material: Nozzle tip and disc made of high chrome stainless steel for heat resistance

• Strainer Mesh: 120 mesh Monel up to and including 13.50 GPH; 80 mesh on larger sizes

• Maximum Pressure: Capable of operating up to 250 psi line pressure, handling oils with up to 70 S.S.U. viscosity at this pressure

This nozzle is suitable for applications requiring precise fuel atomization and adjustable flow rates, such as in industrial heating systems.
