Webster - Two Stage Pump - 22R623D-5AA14
Original price
$1,032.55
-
Original price
$1,032.55
Original price
$1,032.55
$1,032.55
-
$1,032.55
Current price
$1,032.55
SKU WTR-22R623D-5AA14
Availability:
In stock - ships in 2-3 days

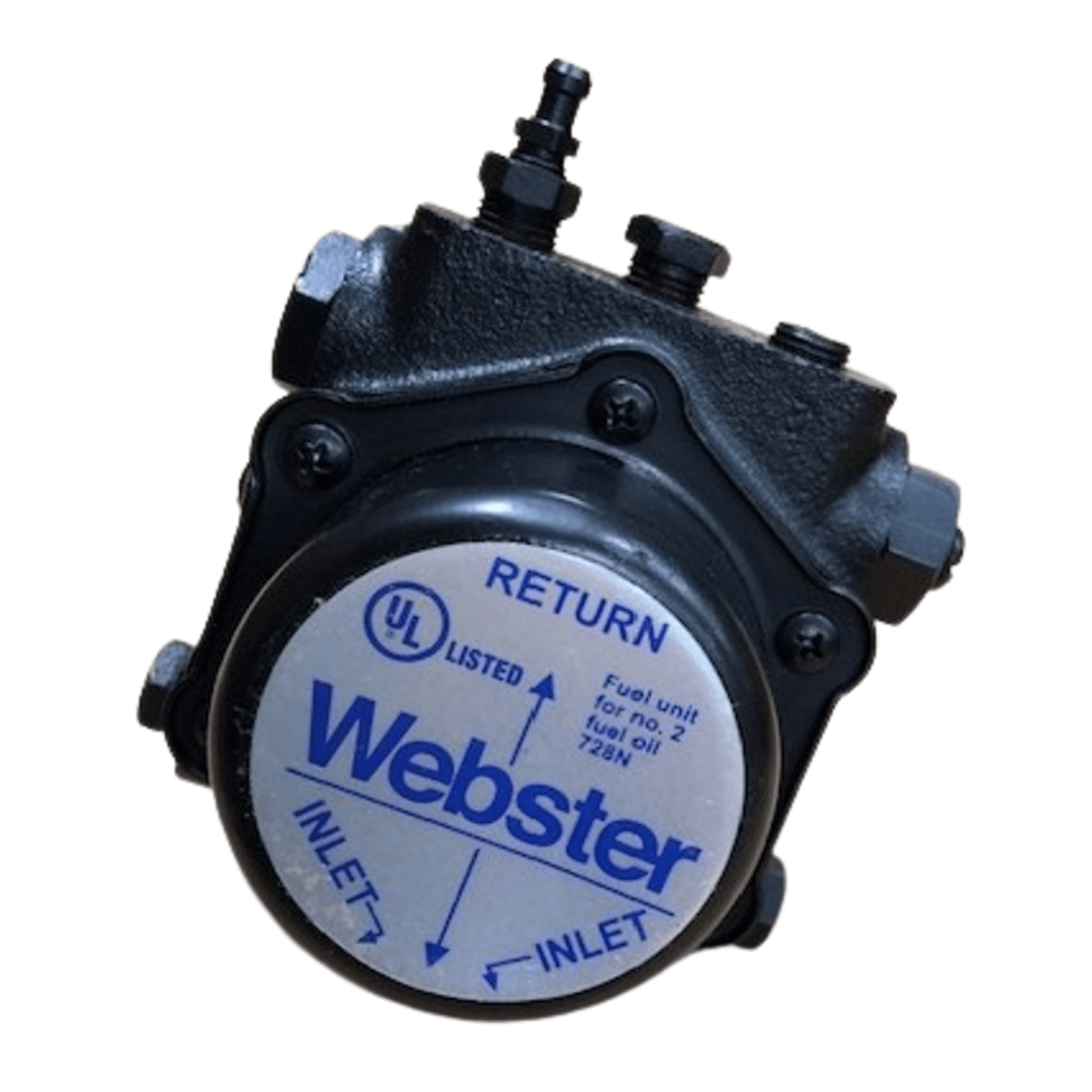

Webster 22R623D-5AA14 two stage R Series Service Saver fuel unit, 3450 RPM.
Webster's R Series Service Saver fuel units feature the unique Webster rotary filter, simple flange mounting and an extended shaft length, making the R Series adaptable to virtually every replacement need.
Features
- Built-in pressure regulator
- Self-cleaning internal rotary filter (external line filter recommended with each installation)
- Two-bolt flange mounting
- Double lip shaft seal
- Suction gear one size larger than pressure gear
Product Details
- Model: 22R623D-5AA14
- Brand: Webster
- Series: R Series Service Saver
- Type: Two Stage Fuel Unit
- Speed: 3450 RPM
- Rotation (viewed from shaft end): Clockwise, nozzle port right (D Style)
- Max. Rated Pressure: 300 PSI
- Factory Set Pressure: 100 PSI
- Max. Recommended Fire Size @ Rated PSI: 56 GPH
- Max. Recommended Fire Size @ 100 PSI: 65 GPH
- Suction Gear Capacity: 135 GPH
- Max. Wattage Requirement @ Rated PSI: 425 W
- Internal Cut-Off: No
- Nozzle Port: 1/4" NPTF, side location
- Other Ports: 1/4" NPTF – 2 inlets, gauge port, top and bottom returns
- Factory Set For: Two-pipe (bypass plug installed)
- Shaft: 7/16" key drive
- Max. Inlet Vacuum: 15" Hg
- Max. Inlet Pressure: 3 PSIG (NFPA 31)
