Oil Pump - Two Stage - 22R322D‑5AA14 - Webster

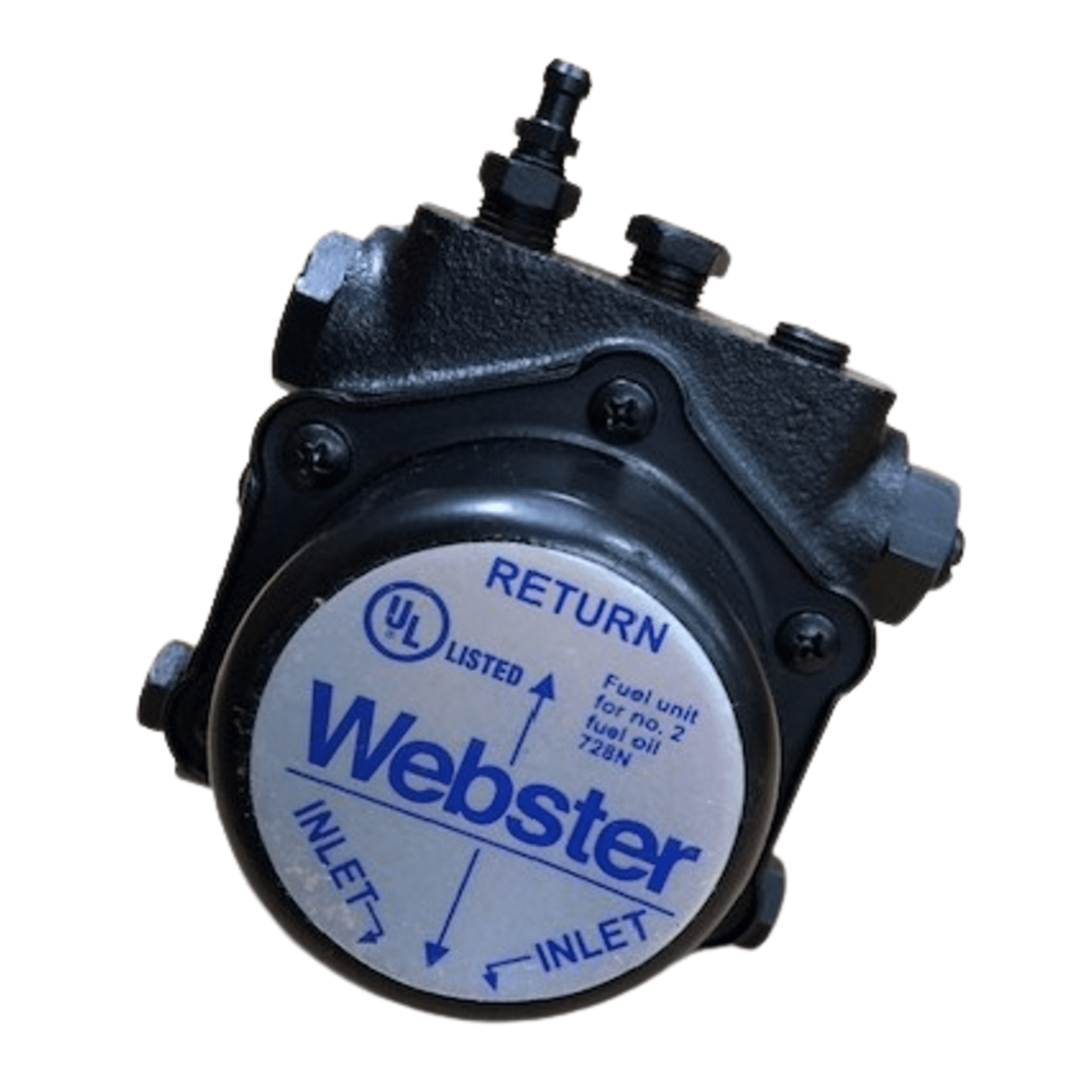

22R322D-5AA14 Webster Two-Stage Fuel Pump

Webster 22R322D-5AA14 is a 22R-Series two-stage fuel pump designed for oil-fired burner systems requiring staged pressure control for low- and high-fire operation. It is commonly used in commercial and light-industrial heating equipment.

Technical Specifications

• Pump Type: Two-Stage Fuel Pump
• Series: Webster 22R (3450 RPM)
• Fuel Type: No. 2 fuel oil and lighter
• Rotation: Clockwise (viewed from shaft end)
• Motor Speed: 3450 RPM
• Pump Capacity:
  • ~34 40 GPH (application-dependent)
• Pressure Range:
  • Typical operating: 100 PSI
  • Maximum rated: up to 300 PSI (two-stage configuration)
• Port Size: 1/4" NPTF (nozzle outlet varies by configuration)
• Pump Configuration: Two-stage, Service Saver / R-Series design
• Seal Type: Double-lip shaft seal
• Filtration: Integrated rotary self-cleaning filter
