2275-653 - Crown - WEIL-McLAIN IGNITOR TRANSFORMER QB REPL FRANCE 5LAY32/QB180/300 (1EA)

2275-653 - Crown - WEIL-McLAIN Ignitor Transformer QB (1EA)
Replaces France 5LAY32 / QB180 / QB300

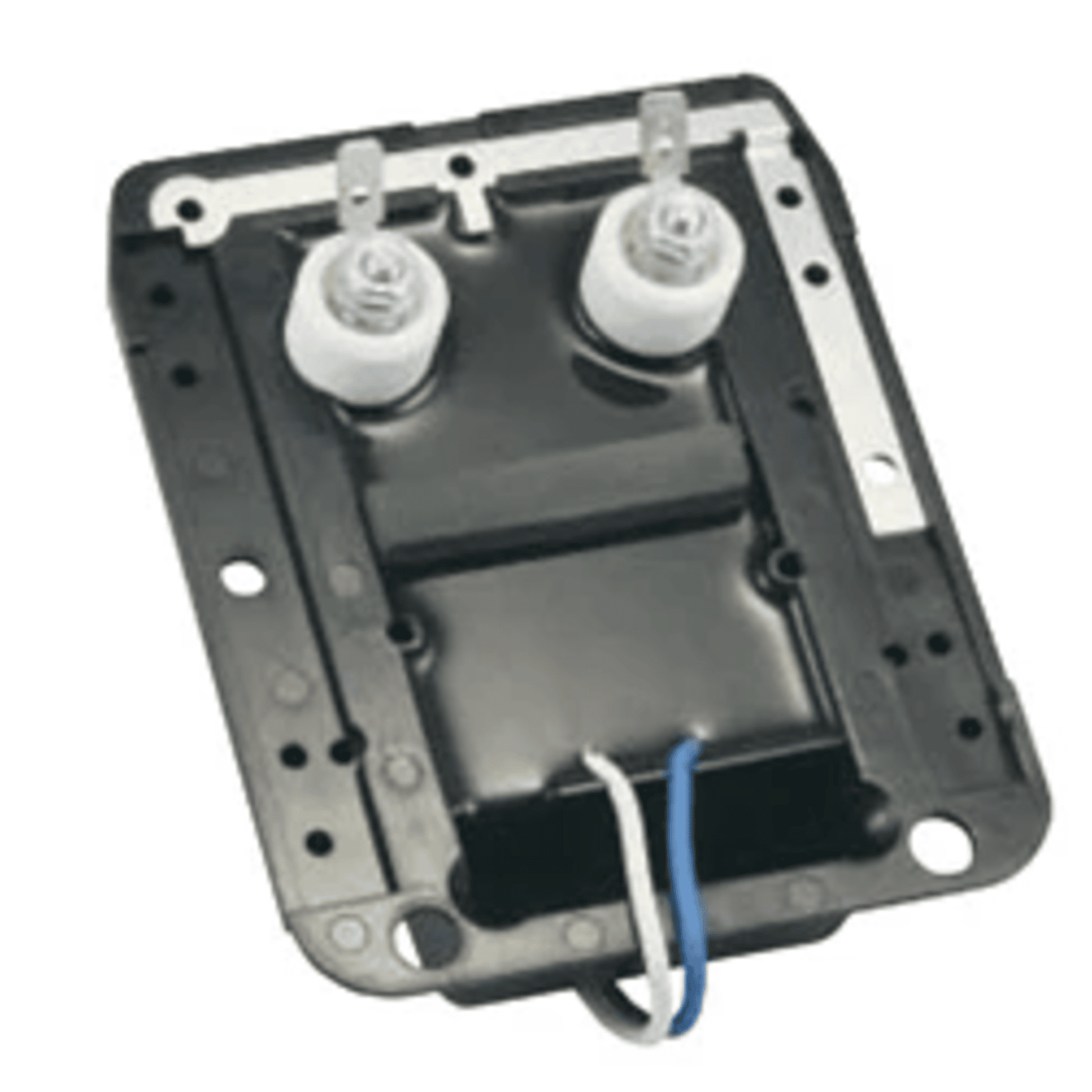

The Crown 2275-653 Ignitor Transformer, manufactured by Allanson, is a solid-state ignition transformer designed for Weil-McLain QB180 and QB300 oil burners. It serves as a direct replacement for France 5LAY-32 and other legacy models, offering reliable ignition performance in residential, commercial, and industrial heating systems.

Specifications:

• Primary Voltage: 120V AC
• Secondary Voltage: 17,500V
• Current Output: 45 mA
• Power Rating: 150 VA
• Frequency: 50/60 Hz
• Ground Type: Mid-Point Ground
• Operating Temperature: -30°C to 40°C
• Storage Temperature: -40°C to 80°C
• Humidity Tolerance: Up to 90% RH
• Air Gap Loading: 1/16″ – 3/16″
• Dimensions: 4.06″ x 4.92″ x 2.91″
