2275-630 - Crown - CARLIN IGNITOR TRANSFORMER CARLIN 99 100 & 101 (1EA)

2275-630 - Crown - CARLIN Ignitor Transformer for Carlin 99, 100 & 101 (1EA)

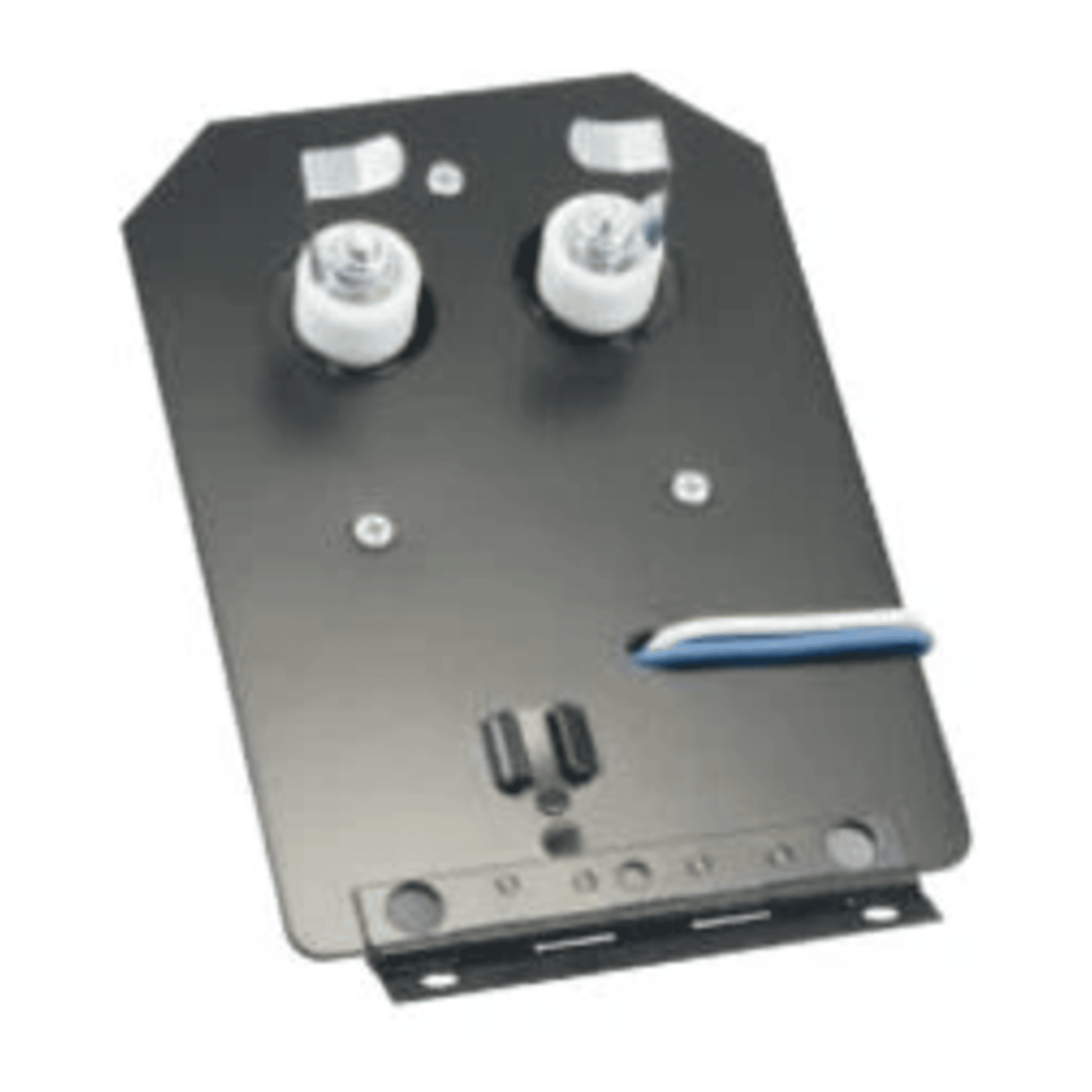

The Crown 2275-630 Ignitor Transformer, manufactured by Allanson, is a solid-state ignition transformer designed for use with Carlin 99, 100, and 101 burner models. This high-performance transformer ensures reliable ignition in residential, commercial, and industrial heating systems.

Specifications:

• Primary Voltage: 120V AC
• Secondary Voltage: 17,500V
• Current Output: 45 mA
• Power Rating: 150 VA
• Frequency: 50/60 Hz
• Ground Type: Mid-Point Ground
• Operating Temperature: -30°C to 40°C
• Storage Temperature: -40°C to 80°C
• Humidity Tolerance: Up to 90% RH
• Air Gap Loading: 1/16″ – 3/16″
• Includes: Mounting plate gasket and end hinge
