2275-628G - Crown - BECKETT IGNITOR TRANSFORMER AF & AFG (1EA)

2275-628G - Crown - BECKETT Ignitor Transformer AF & AFG (1EA)

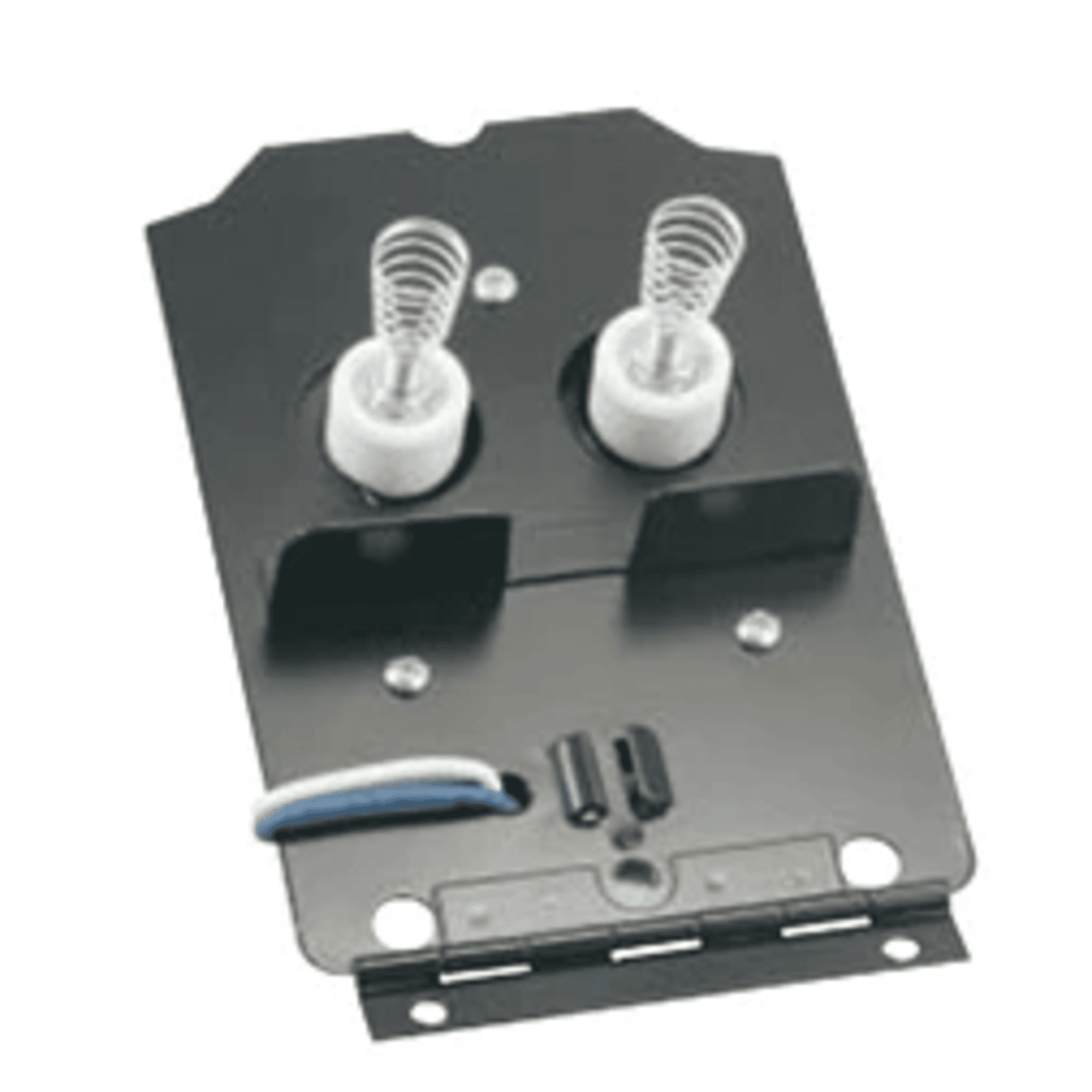

The Crown 2275-628G Ignitor Transformer is a solid-state electronic ignition transformer designed for Beckett A, AF, and AFG burners. Manufactured by Allanson, this transformer ensures reliable ignition performance in residential, commercial, and industrial heating systems.

Specifications:

• Primary Voltage: 120V AC
• Secondary Voltage: 17,500V
• Current Output: 45 mA
• Power Rating: 150 VA
• Frequency: 50/60 Hz
• Ground Type: Mid-Point Ground
• Dimensions: 4.06″ x 4.92″ x 2.91″
• Operating Temperature: -30°C to 40°C
• Storage Temperature: -40°C to 80°C
• Humidity Tolerance: Up to 90% Relative Humidity
• Air Gap Loading: 1/16″ – 3/16″
