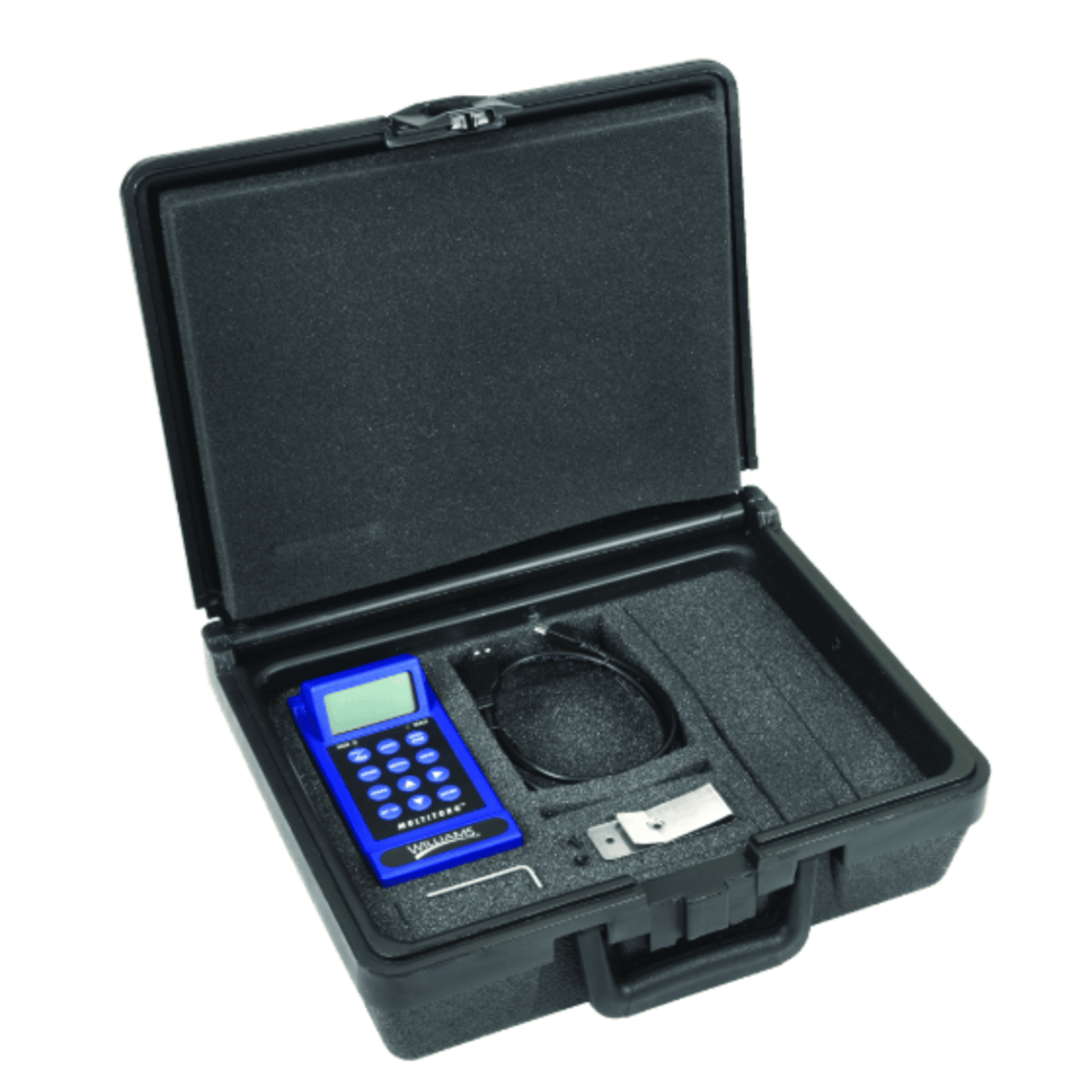

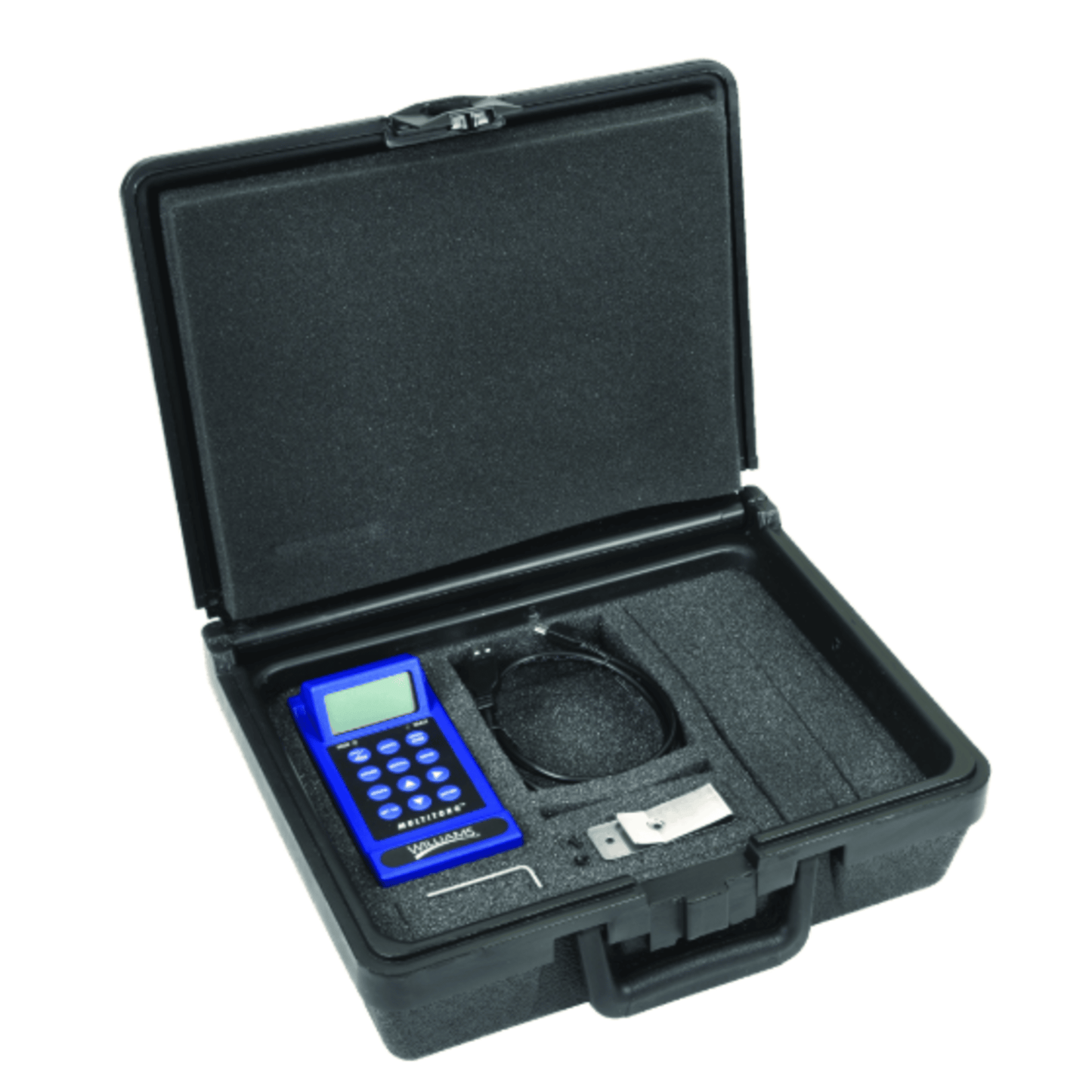

1600-MT2W - Williams - MULTITORQ™ Torque Acquisition Meter

1600-MT2W - Williams - MULTITORQ™ Torque Acquisition Meter

SKU: WIL-1600-MT2W

$3,022.39 CAD
$3,022.39 CAD
Sale Sold out
Shipping calculated at checkout.

The Williams 1600‑MT2W MULTITORQ™ Torque Acquisition Meter is a highly versatile, portable electronic torque analyzer designed for precise torque measurement in the most demanding industrial, maintenance, and assembly environments. Built to capture accurate torque readings from sensors used between sockets and drivers, the MULTITORQ™ system provides unmatched flexibility, data reliability, and performance.

Whether you’re validating torque, performing quality audits, or ensuring critical fasteners meet spec, the MULTITORQ™ meter delivers professional accuracy and full‑featured data acquisition in a compact, rugged unit.

Key Features

Versatile Measurement Capabilities

  • Reads torque from sensors placed between sockets and drivers.
  • Works with sockets, extensions, universal joints, ratcheting drivers, or any combination.
  • Sensors sold separately; available in 8 ranges from 2–20 in‑oz to 150–1500 ft‑lb.

High Accuracy & Bi‑Directional Measurement

  • ±1% of reading accuracy from 10%–100% of sensor range.
  • Certain sensors (20 in‑oz and 10 in‑lb) at ±2% of reading.
  • Reads torque in both directions (CW and CCW).

Wide‑Angle LCD Display

  • Large, easy‑to‑read screen with selectable units:
    ft‑lb, in‑lb, in‑oz, Nm, dNm, mkg, cmkg
  • 4‑digit, 8000‑count display with alpha and numeric function flags.

Flexible Operating Modes

  • Track Mode – live torque display as force is applied.
  • Peak Mode – captures and holds the highest torque value applied.

Programmable Alarms & Controls

  • Adjustable high/low torque limits with audible & visual alerts.
  • Soft‑touch keys for:
    Hi/Lo Alarm, Zero/Tare, Setup, Units, Store/Recall/Clear, Send, Statistics, Enter.

Data Acquisition & Connectivity

  • Stores up to 3,500 measurements.
  • RS‑232 true serial output (300–19.2k baud) plus Mitutoyo statistical protocol.

Power, Battery & Charging

  • Rechargeable Ni‑Cad batteries.
  • 20 hours continuous runtime per full charge.
  • Includes 120 VAC charger; optional 220 V charger available.
  • Output: 9VDC, 200 mA.
