13668 - Crown - 60" CAD CELL KIT HW#C554A-1463 (1EA)

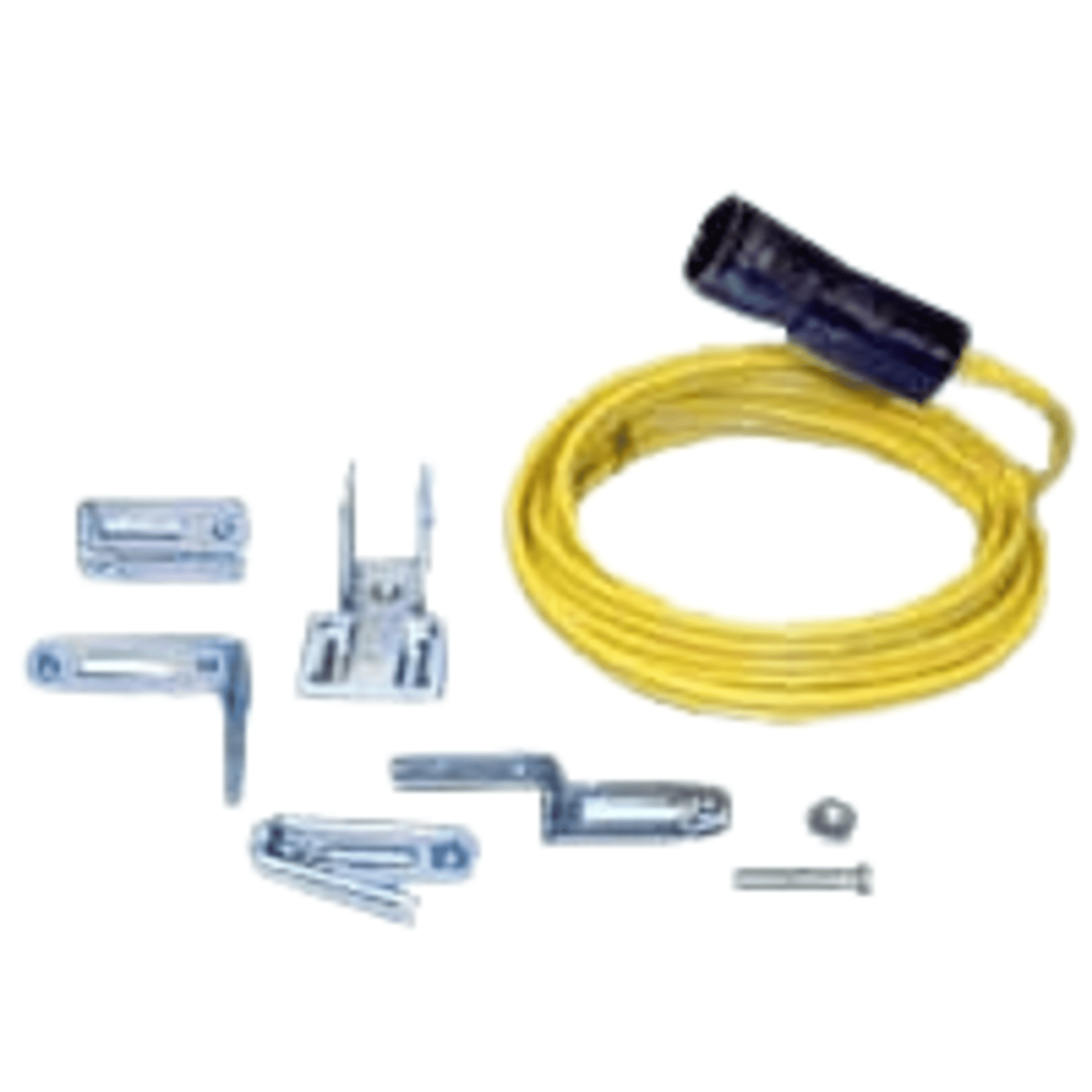

The Crown 13668 – 60" CAD Cell Kit (H/W#: C554A-1463) is a complete flame detection assembly used in oil burner systems. Here's a detailed breakdown:

🔧 Product Specifications

• Product ID: 13668
• Hardware Number: C554A-1463
• Type: Cadmium-Sulfide Flame Detector Kit
• Lead Length: 60 inches
• Mounting: Includes multiple brackets (A, B, E, J, and P) and a fuel line adaptor
• Electrical Connections: NEC Class 1 lead wires with 1/4" quick-connect flags
• Temperature Rating: Up to 140°F
• Function: Detects flame presence in oil burner systems; triggers shutdown on flame failure
• Design: Glass-to-metal hermetic seal to resist humidity, soot, and oil fumes
