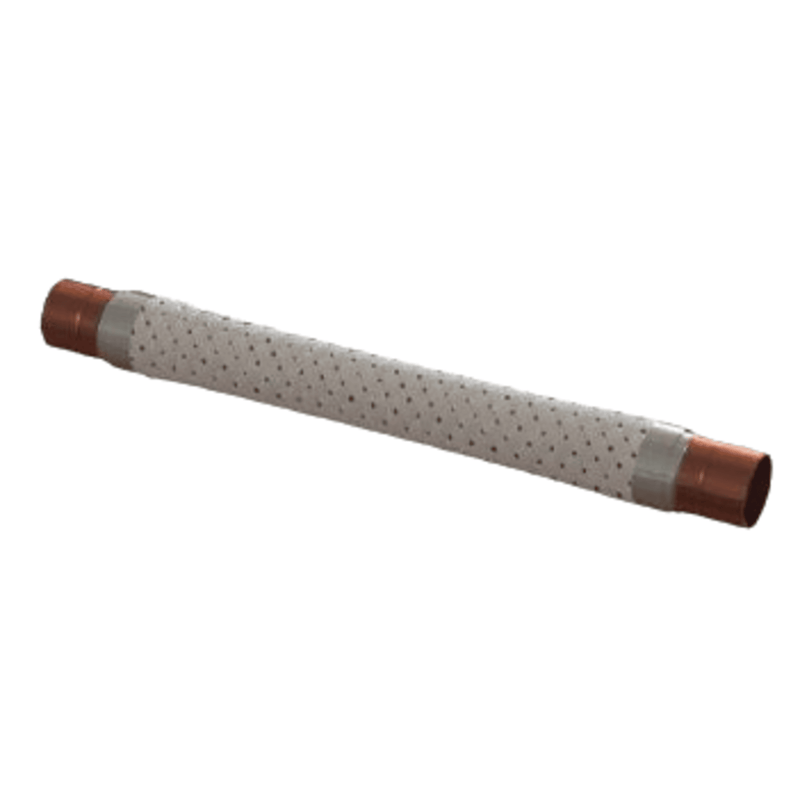

Vibration Eliminator 5/8 ODS - SS with copper tube ends - Henry

The Henry V-5/8 Vibration Eliminator with 5/8" ODS copper tube ends is a component designed to reduce vibration in refrigeration and air conditioning systems. Here are the key specifications and features:

Product Overview

• Model: V-5/8
• Connection Size: 5/8" ODS (Outside Diameter Solder)
• Construction: Stainless steel hose and braid with copper tube ends
• Application: Used to absorb compressor vibration and reduce stress on piping and system components

Technical Specifications

• Maximum Working Pressure: 44.8 Barg (650 PSIG)
• Operating Temperature Range: -40°C to +120°C (-40°F to +248°F)
• Refrigerant Compatibility: Suitable for A2L, CO₂, HC, HCFC, HFC, and HFO refrigerants (where material compatibility is ensured)
• Certifications: CE, UKCA, and UL 207 (for V-Series)

Design Features

• Stainless Steel Hose and Braid: Provides durability and flexibility
• Copper Tube Ends: Allow for easy brazing into copper piping systems
• Helium Leak Tested: Ensures leak-tight performance
