Vibration Eliminator 3-5/8 ODS - SS with copper tube ends - Henry

The Henry V-3-5/8 Vibration Eliminator is a robust component designed for large-capacity HVAC/R systems. Here's a detailed overview of its specifications and features:

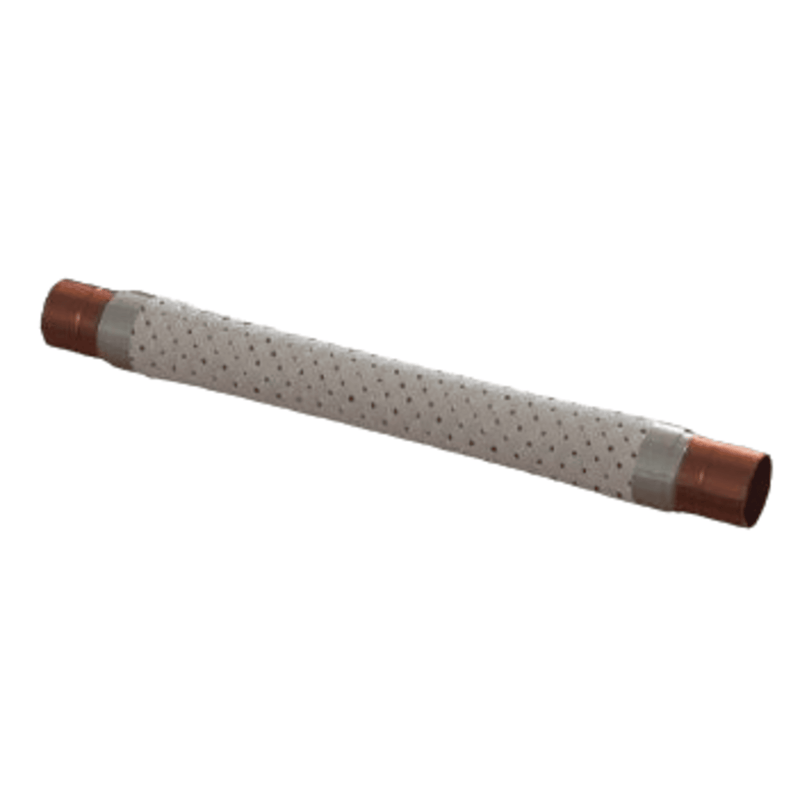

Product: Henry V-3-5/8 Vibration Eliminator

• Connection Size: 3-5/8" ODS (Outside Diameter Solder)
• Construction:
  • Deep pitch corrugated stainless steel hose
  • Stainless steel braid for durability
  • Copper tube ends brazed with high-temperature alloy
  • Stainless steel ferrules for reinforcement

Key Specifications

• Maximum Working Pressure: 25 Barg (363 PSIG)
• Operating Temperature Range: -40°C to +120°C (-40°F to +248°F)
• Refrigerant Compatibility: Suitable for HCFC, HFC, CO₂, A2L refrigerants, and associated oils
• Certifications: CE marked and UL listed (V-Series only)
• Weight: Approximately 9.46 kg

Applications

• Designed for installation in suction and discharge lines
• Absorbs compressor vibration, reducing stress on piping and system components
