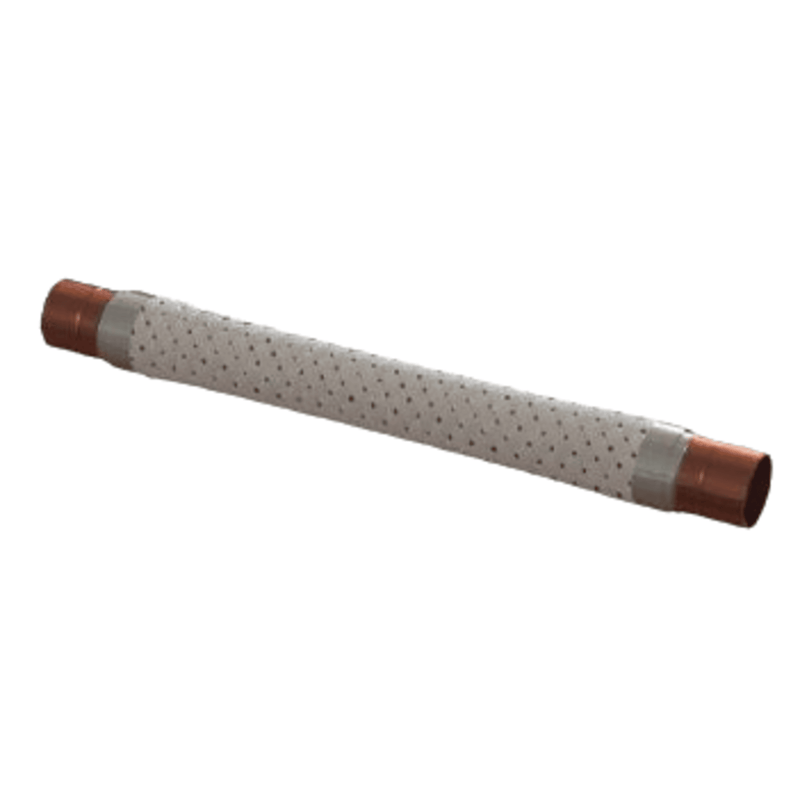

Vibration Eliminator 3-1/8 ODS - SS with copper tube ends - Henry

The Henry V-3-1/8 Vibration Eliminator is a high-capacity component designed for use in large commercial and industrial refrigeration and air conditioning systems. Here's a detailed breakdown of its specifications:

Product: Henry V-3-1/8 Vibration Eliminator

• Connection Size: 3-1/8" ODS (Outside Diameter Solder)
• Construction:
  • Corrugated stainless steel hose
  • Stainless steel braid for strength and flexibility
  • Copper tube ends brazed with high-temperature alloy
  • Stainless steel ferrules for added durability

Technical Specifications

• Maximum Working Pressure: 35 Barg (508 PSIG)
• Operating Temperature Range: -40°C to +120°C (-40°F to +248°F)
• Refrigerant Compatibility: Compatible with A2L, CO₂, HC, HCFC, HFC, and HFO refrigerants (where material compatibility is ensured)
• Certifications: CE, UKCA, and UL 207 (V-Series only)

Applications

• Installed in suction and discharge lines to absorb compressor-induced vibration
• Helps prevent mechanical stress and potential damage to piping and system components
• Ideal for horizontal installation in suction lines to avoid condensation-related issues
