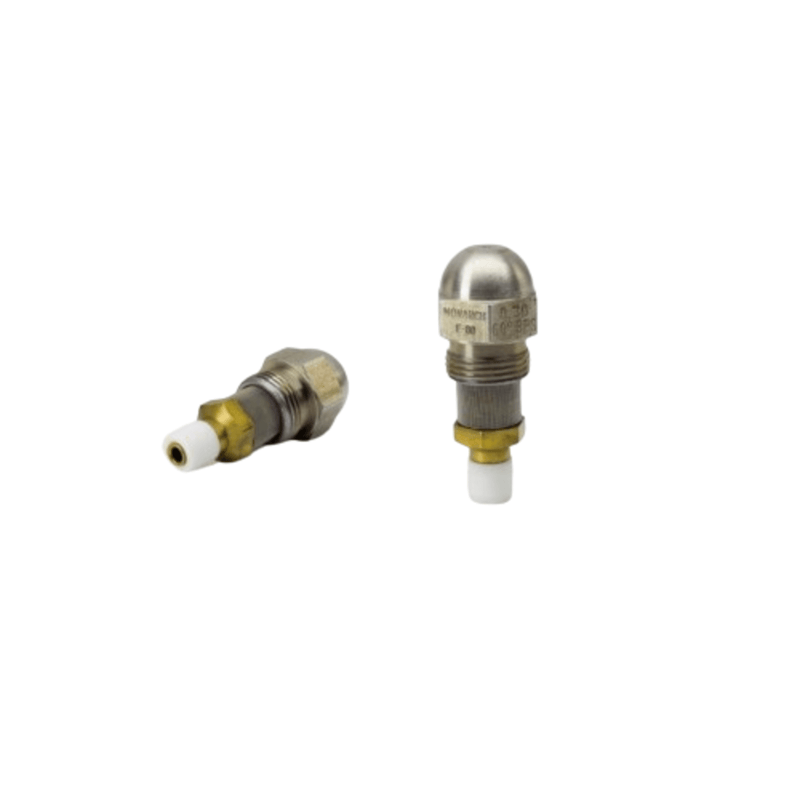

9.00 60 BPS Monarch Oil Nozzle

The Monarch 9.00 60 BPS Oil Nozzle is a precision‑engineered nozzle designed for high‑capacity oil burner applications requiring a solid cone spray pattern. Part of Monarch’s BPS (Bypass Solid) series, this nozzle delivers uniform fuel distribution with controlled atomization, making it well‑suited for larger burners and higher firing rates where consistent combustion is critical.

Spray Pattern BPS Series
The BPS (Bypass Solid) spray pattern produces a solid cone with a filled‑in center. This design helps maintain flame stability in burners that require a heavier fuel concentration through the core of the flame, particularly in high‑input or older‑style combustion chambers.

Key Features

• Flow Rate: 9.00 GPH
• Spray Angle: 60°
• Spray Pattern: BPS Solid cone
• Precision Machined: Ensures consistent atomization and repeatable performance
• High‑Quality Construction: Designed for long service life and reliable operation
• OEM‑Grade Performance: Meets Monarch’s strict manufacturing standards

Applications

• High‑capacity residential oil burners
• Commercial and industrial oil‑fired equipment
• Burners requiring solid cone spray patterns for stable combustion
