Feedthrough (CS13077) - Auburn

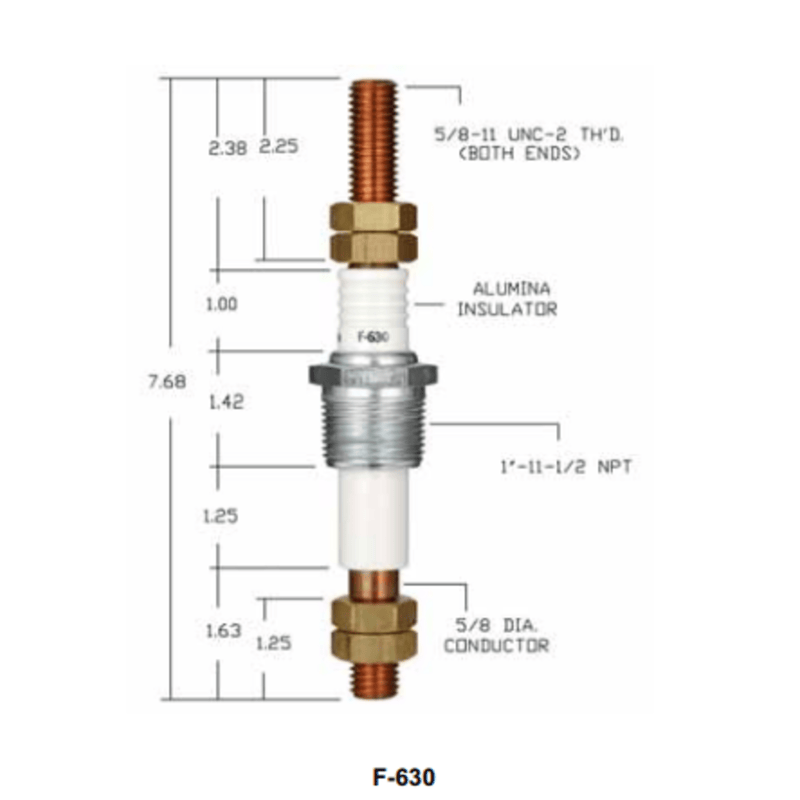

The Auburn F-630 Electric Feedthrough is a versatile and robust component used in various industrial applications. Here are some key details:

• Manufacturer: Auburn
• Part Number: F-630
• Alternate Part Number: CS13077
• Thread Size: 1” 11 1/2 NPT
• Hex Size: 1 3/8” CAD
• Overall Length: 7.68"
• Current Rating: 750 Amps
• Flash-Over Voltage: 10 kV
• Max Operating Temperature: 200°F
• Conductor Material: Copper
• Pressure Rating: Suitable for pneumatic applications up to 2500 psi

This feedthrough is designed to transmit current into a sealed vessel and is commonly used in power transformers, switchgear, and hermetically sealed compressors and motors
