Malco - SmartTool Pex-to-Wire Stapler - SM1

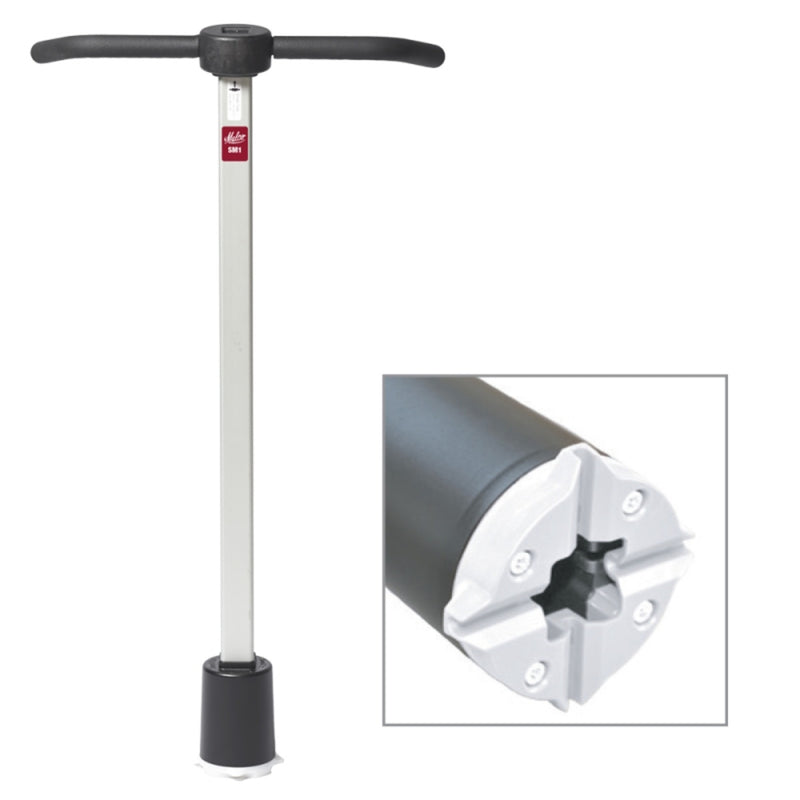

Malco SM1 SmartTool™ with SmartClip™ Fasteners – SmartTool™.

For Fast, uniform layout of PEX to a wire-grid! The SmartTool™ stapler is used to install SmartClip™ staples that secure an in-floor radiant heating layout of PEX tubing to a wire grid with foam board base. The ergonomic 38-1/2 inch (98 cm) tall SmartTool™ weighs only 6.1 lbs (2.8 kg) and saves time by operating from a standing position to attach SmartClips™ to a 10-ga (3.5 mm) wire grid. The installed SmartClips™ accommodate popular 1/2 inch PEX tubing, which the user also installs from a standing position by pressing into place with one foot while distributing the PEX along the clip layout. The SmartClip™ keeps the inserted PEX elevated over the wire grid to provide thorough concrete encasement and coverage.

Features

• Easy top-loading.
• Stand Comfortably
• Uniform layout ensures even radiant heating surface.

Product Details

• Part Number: SM1
• Brand: Malco
• Tool Length: 38.5 in. (98 cm)
• Handle Width: 21 in. (53 cm)
• SmartTool Clip Maximum: 2 Strips of 20 Clips
• Tool Net Weight: 6.1 lbs. (2.78 kg)
• Quantity: 1
