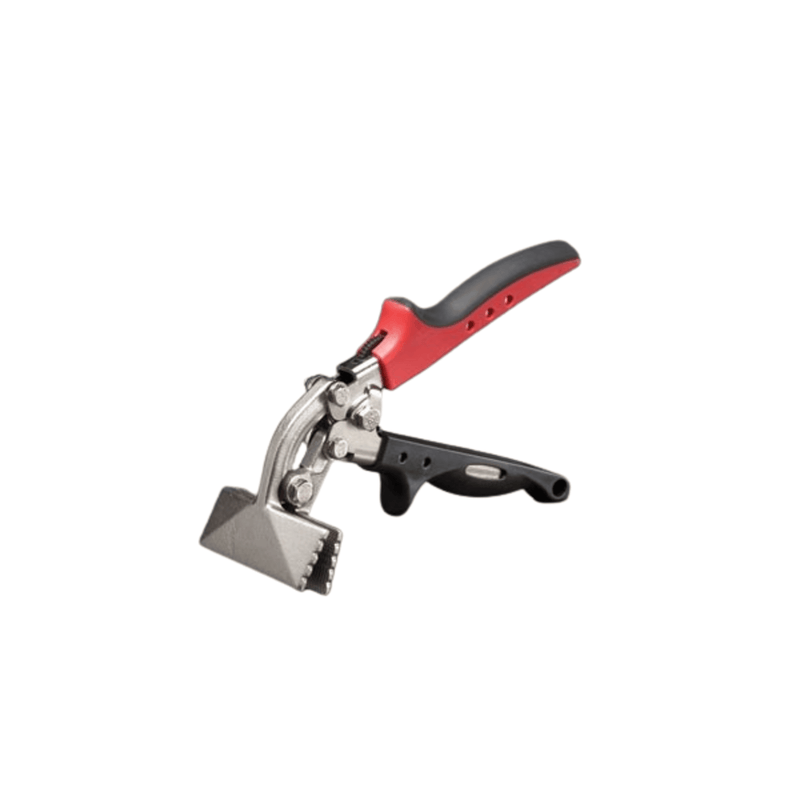

Malco - Hand Seamer, 3" Offset - S3R

Malco S3R 3 in. Offset Hand Seamer.

Malco Hand Seamers with forged steel jaws, are the premier choice for bending, folding, flattening and straightening sheet metal edges or safely gripping and moving sheet metal around the job site. Designed for the metal trades, including HVACR installation, roofing and siding applications, and commercial building and remodeling, these seamers are available in 3 inch (76.2 mm) and 6 inch (152.4 mm) jaw widths as well as an offset 3 inch (76.2 mm) size for overhead work. Depth markings graduated in 1/4 inch (6.4 mm) increments are complemented by a powerful compound leverage design. Easily bend flanges or completely flatten seams from 1/4 to 1-1/4 inch (6.4-31.8 mm) deep in 24 gauge (0.71 mm) galvanized or (0.61 mm) mild steel. Hardened steel handles resist abuse. Powerful compound leverage design. Tool also features rust resistant nickel plating.

Features

• 3-1/4 in. (83 mm) Jaws with Offset Handles. 1-1/4 inch (31.8 mm) Bending Depth
• Forged Steel Jaws
• Longer Lasting Performance: Wear resistant, hardened steel construction throughout. Hardened steel also produces greater handle strength to resist abuse and collapsing. Nickel plating resists elements.

Product Details

• Part Number: S3R
• Brand: Malco
• Jaw Depth: 1-1/4 in. (31.8 mm)
• Jaw Width: 3-1/4 in. (83 mm)
• Variable Leverage Ratio (High / Low) throughout stroke: 4.7 to 1.0 - 7.1 to 1.0
• Jaws: High Carbon Steel Forgings
• Length: 8 in. (203 mm)
• Net Weight: 24 oz. (680 g)
• Capacity – Aluminum: .035 in. (0.89 mm)
• Capacity – Copper: .023 in. (0.58 mm)
• Capacity – Stainless Steel: 26 Gauge / .018 in. (0.46 mm)
• Capacity – Galvanized Steel: 24 Gauge / .028 in. (0.71 mm)
• Capacity – Mild Steel: 24 Gauge / .024 in. (0.61 mm)
• Replacement Parts: 5018 Replacement Spring
