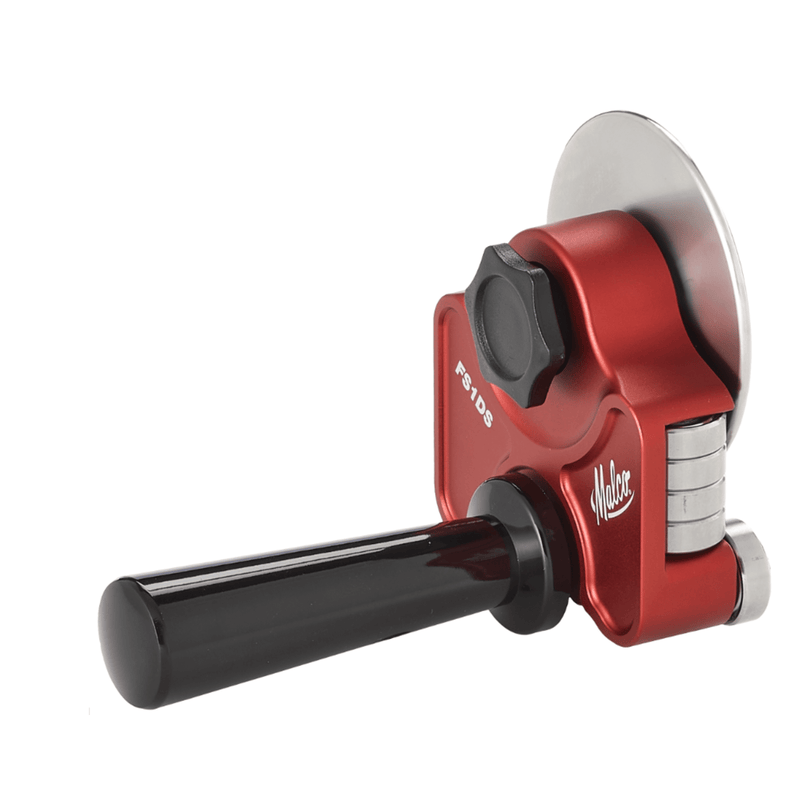

1 Station Disc, Small - Malco

The Malco FS1DS - 1 Station Disc, Small is a compact and professional-grade metal disc bender designed for precision work on smaller bends. Here's a detailed breakdown:

Product Brochure

🔧 Product Overview

• Model: FS1DS (Small 1-Station Disc)
• Type: Metal Disc Bender
• Best For: Short, curved, or straight bends in sheet metal—ideal for roofing and HVAC applications.

📐 Bending Capabilities

• Bend Range: 5/16″ to 1 1/8″ (8 30 mm)
• Bend Radius: 0.059″ (1.5 mm)
• Bend Angle: 90° to 180°
• Compatible Materials:
  • 24-gauge steel
  • 26-gauge stainless steel
  • 0.040″ aluminum
  • 20 oz copper
  • 1 mm zinc

🛠️ Key Features

• Removable Disc: Enables quick disassembly and mid-panel tool removal.
• Material Guides: Three sets of bearing guides for smooth, accurate bends.
• Portability: Lightweight and compact for easy transport and storage.
• Durability: CNC-machined aluminum and stainless steel for corrosion resistance and precision.
• Optional Handle: Compatible with the FSH1 Disc Handle (sold separately) for added control and versatility
