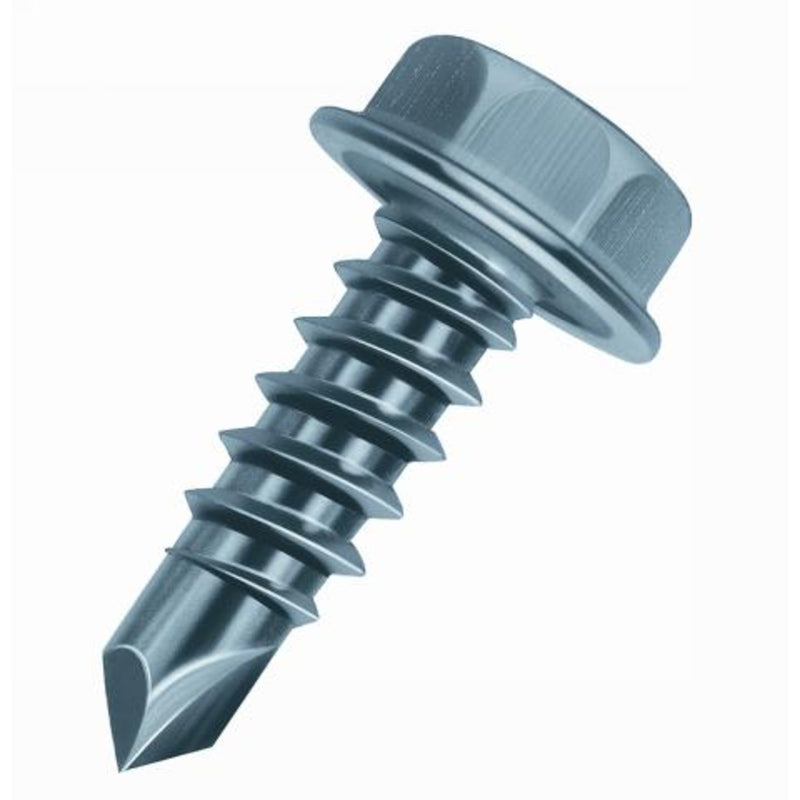

BIT-TIP Screws HW 10-16X3/4 (500PG) - Malco

The Malco BT143T Bit-Tip HW 10-16x3/4" (500 Pack) is a high-performance self-drilling and tapping screw designed for fastening sheet metal and other materials without the need for pre-drilling.

🔩 Product Specifications

• Model: BT143T
• Screw Size: 10-16 x 3/4"
• Head Type: Hex Washer (HW), not slotted
• Driver Size: 5/16" hex
• Point Type: #3 Bit-Tip (self-drilling)
• Material: Specially heat-treated steel
• Recommended Material Thickness: 0.110" to 0.175"
• Tensile Strength: 2100 lbs
• Torsional Strength: 61 lbs
• Pull-Out Values:
  • 26ga: 145 lbs
  • 24ga: 235 lbs
  • 20ga: 364 lbs
  • 16ga: 708 lbs
  • 14ga: 1,015 lbs
