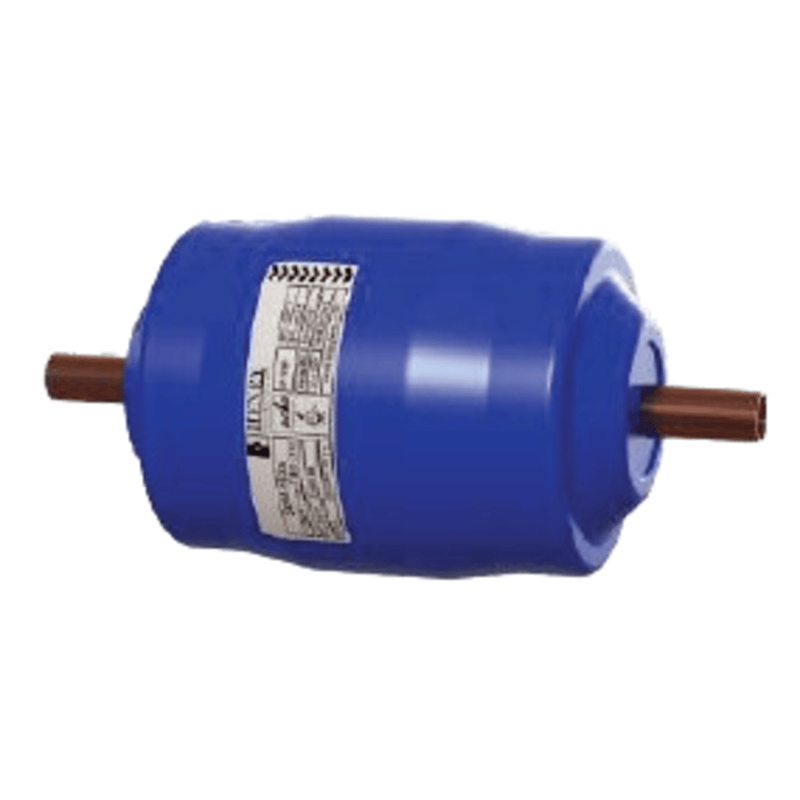

Filter/Drier 1/2 ODS - 41(CI) - Liquid Line, Solder - Henry

Here are the specifications for the Henry SDM-414S Liquid Line Filter/Drier (Solder Connection):

Product Overview

• Model: SDM-414S
• Connection Size: 1/2" ODS (Outside Diameter Solder)
• Volume: 41 in³ (cubic inches)
• Application: Liquid line filter/drier for refrigeration and air-conditioning systems

Key Features

• Core Composition: 100% Molecular Sieve desiccant
• Function: Removes moisture, acid, and solid contaminants to protect compressors and system components
• Filtration:
  • Solid particle filtration down to 150 microns
  • Non-woven polyester filter pad and mesh
• Construction:
  • Shell: Powder-coated carbon steel for corrosion resistance
  • Connections: Solid copper ODS
• Refrigerant Compatibility: Suitable for A2L, CO₂, HC, HCFC, HFC, and HFO refrigerants
• Operating Range:
  • Pressure: Up to 650 PSI (45 Bar)
  • Temperature: -40°F to +212°F (-40°C to +100°C)
• Certifications: CE, UKCA, UL207, AS2971.2
