Filter/Drier 1/4 ODS - 5(CI) - Liquid Line, Solder - Henry
Original price
$18.78
-
Original price
$18.78
Original price
$18.78
$18.78
$18.78
-
$18.78
Current price
$18.78
SKU HEN-SDM-052S
Availability:
4-6 weeks

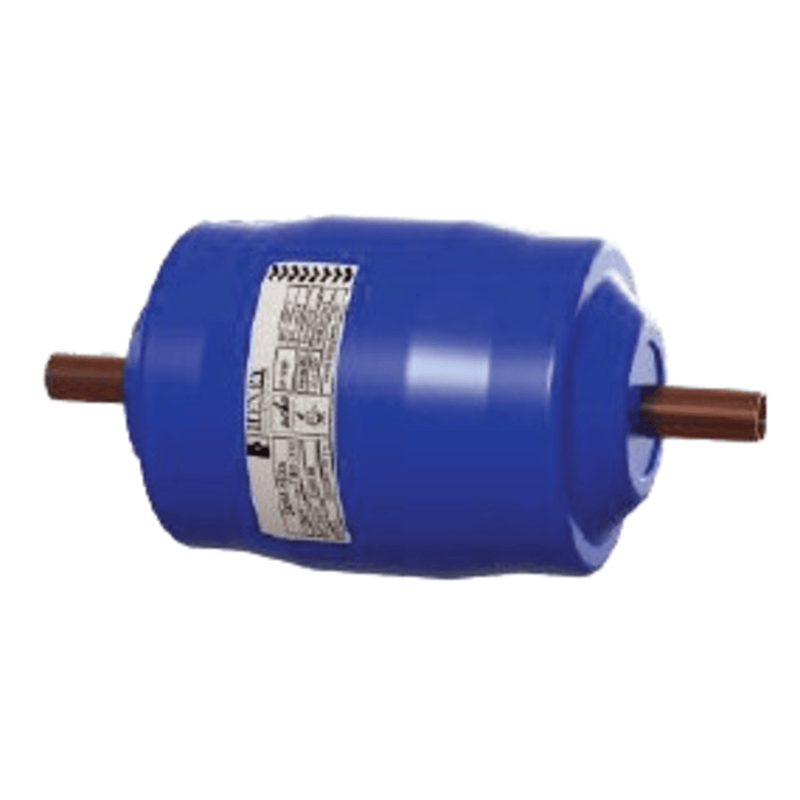

The Henry SDM-052S is a liquid line filter/drier with 1/4" ODS (solder) connections and a 5 cubic inch (CI) core, designed for use in refrigeration and air conditioning systems. Here's a detailed summary of its specifications:
🔧 Product Overview
- Model: SDM-052S
- Connection Type: 1/4" ODS (Outside Diameter Solder)
- Core Volume: 5 cubic inches (CI)
- Core Type: Solid core with 100% molecular sieve desiccant
- Function: Removes moisture, acid, and solid contaminants to protect system components
📐 Technical Specifications
- Maximum Working Pressure: 45 bar (652.6 PSIg)
- Operating Temperature Range: -40°C to +100°C (-40°F to +212°F)
- Refrigerant Compatibility: A2L, CO₂, HC, HCFC, HFC, and HFO refrigerants (where materially compatible)
- Filtration: Down to 150 microns
-
Construction:
- Solid copper solder connections
- Powder-coated finish for corrosion and UV resistance
- 1000-hour salt spray tested to ASTM B117 standards
- Certifications: AS2971.2, CE, UKCA, UL207
