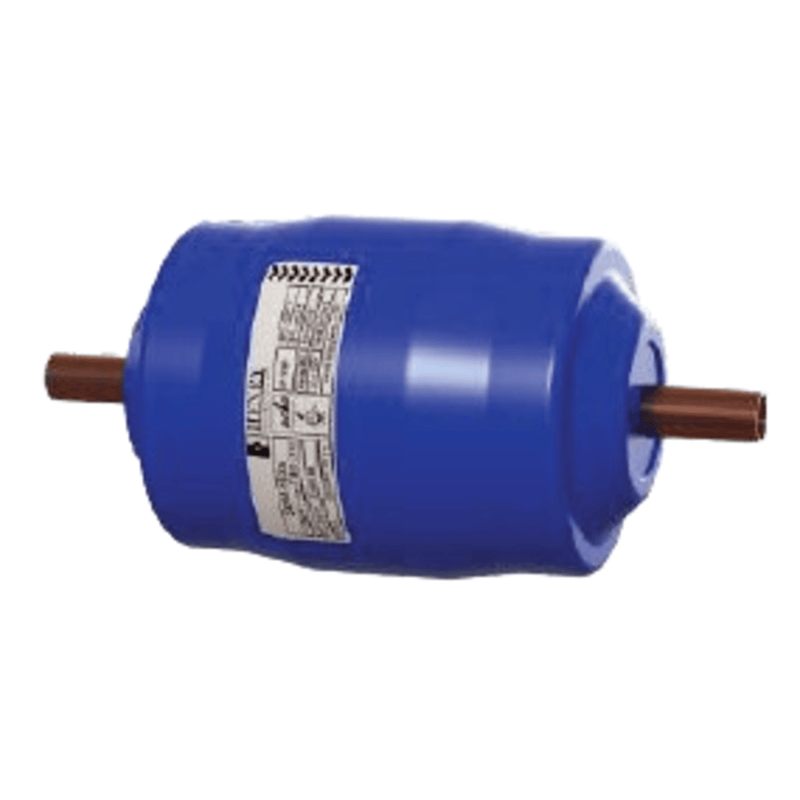

Filter/Drier 3/8 ODS - 3(CI) - Liquid Line, Solder - Henry

The Henry SDM-033S is a liquid line filter/drier with 3/8" ODS (solder) connections and a 3 cubic inch (CI) core, designed for use in refrigeration and air conditioning systems. Here's a detailed overview of its specifications:

🔧 Product Overview

• Model: SDM-033S
• Connection Type: 3/8" ODS (Outside Diameter Solder)
• Core Volume: 3 cubic inches (CI)
• Core Type: Solid core with 100% molecular sieve desiccant
• Function: Removes moisture, acid, and solid contaminants to protect compressors and other system components

📐 Technical Specifications

• Maximum Working Pressure: 650 PSI (45 bar)
• Operating Temperature Range: -40°F to +212°F (-40°C to +100°C)
• Refrigerant Compatibility: HCFC, HFC, CO₂, and R-410A refrigerants
• Filtration: Solid particle filtration down to 150 microns
• Construction:
  • Solid copper solder (ODS) connections
  • Powder-coated finish for UV and corrosion resistance
