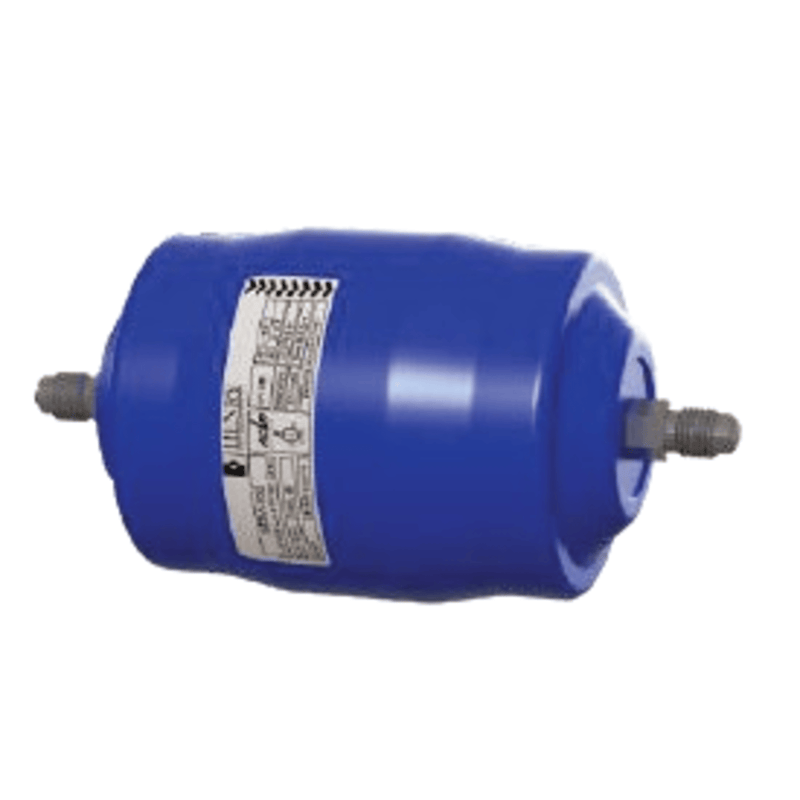

Filter/Drier 3/8 Flare - 3(CI) - Liquid Line, Flare - Henry

The Henry SDM-033 is a liquid line filter/drier with 3/8" SAE flare connections and a 3 cubic inch (CI) core, designed for use in refrigeration and air conditioning systems. Here's a detailed summary based on the latest product data

🔧 Product Overview

• Model: SDM-033
• Connection Type: 3/8" SAE Flare
• Core Volume: 3 cubic inches (CI)
• Core Type: Solid core with 100% molecular sieve desiccant
• Function: Removes moisture, acid, and solid contaminants to protect system components

📐 Technical Specifications

• Maximum Working Pressure: 45 bar (652.6 PSIg)
• Operating Temperature Range: -40°C to +100°C (-40°F to +212°F)
• Refrigerant Compatibility: A2L, CO₂, HC, HCFC, HFC, and HFO refrigerants (where materially compatible)
• Filtration: Down to 150 microns
• Construction:
  • Steel SAE flare connections
  • Powder-coated finish for corrosion and UV resistance
  • 1000-hour salt spray tested to ASTM B117 standards
• Certifications: AS2971.2, CE, UKCA, UL207
