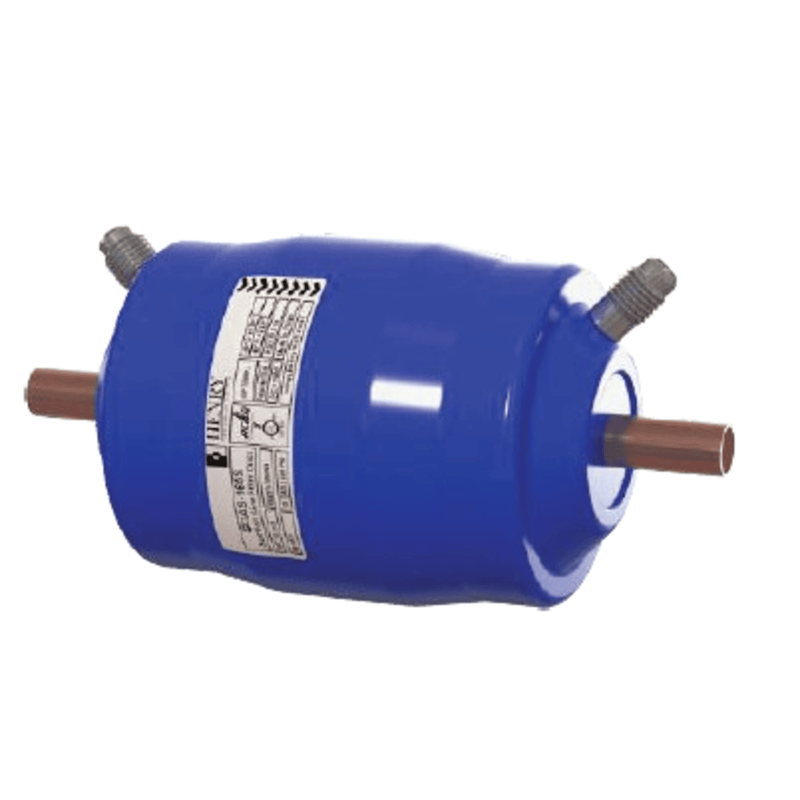

Filter/Drier 3/4 ODS - SDAS-305S, Suction Line - Henry

The Henry SDAS-306S is a suction line filter/drier designed for use in refrigeration and air-conditioning systems. Here are the detailed specifications:

🔧 Product Specifications

• Model: SDAS-306S
• Connection Size: 3/4" ODS (Outside Diameter Solder)
• Application: Suction line
• Refrigerant Compatibility: HCFC, HFC, and CO₂ refrigerants

🛠️ Key Features

• Core Composition: 80% Molecular Sieve, 20% Activated Alumina
• Filtration: Removes moisture, acid, and solid contaminants
• Construction:
  • Shell: Powder-coated carbon steel
  • Connections: Solid copper
  • Filter Pad: Non-woven polyester
  • Mesh: Stainless steel
• Monitoring: Double 1/4” SAE flare connections with Schrader valves for pressure drop monitoring
• Maximum Working Pressure: 650 PSI (45 bar)
• Operating Temperature Range: -40°F to +212°F (-40°C to +100°C)
