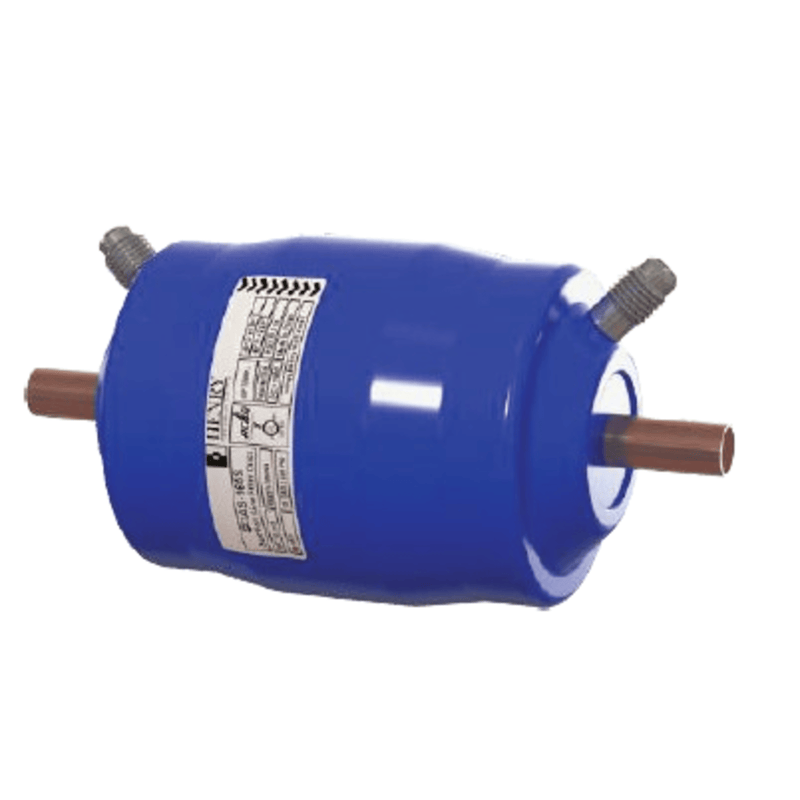

Filter/Drier 7/8 ODS - SDAS-166S, Suction Line - Henry

The Henry SDAS-167S Suction Line Filter/Drier is a high-performance component designed for refrigeration and air-conditioning systems. Here's a detailed breakdown of its key specifications and features:

Product Overview

• Model: SDAS-167S
• Connection Size: 7/8" ODS (Outside Diameter Solder)
• Application: Suction line filter/drier for HVAC systems

Key Features

• Core Composition: 80% Molecular Sieve and 20% Activated Alumina
• Function: Removes moisture, acids, and solid contaminants to protect compressors and other system components
• Filtration: Down to 150 microns using stainless steel mesh and non-woven polyester filter pad
• Construction:
  • Shell: Carbon steel with powder coating for corrosion resistance
  • Connections: Solid copper ODS
  • Internal Components: Galvanized steel plates, steel spring, and Schrader valves for pressure monitoring
• Refrigerant Compatibility: Suitable for HCFC, HFC, and CO₂ refrigerants including R-410A
• Operating Range:
  • Pressure: Up to 650 PSI (45 Bar)
  • Temperature: -40°F to +212°F (-40°C to +100°C)
