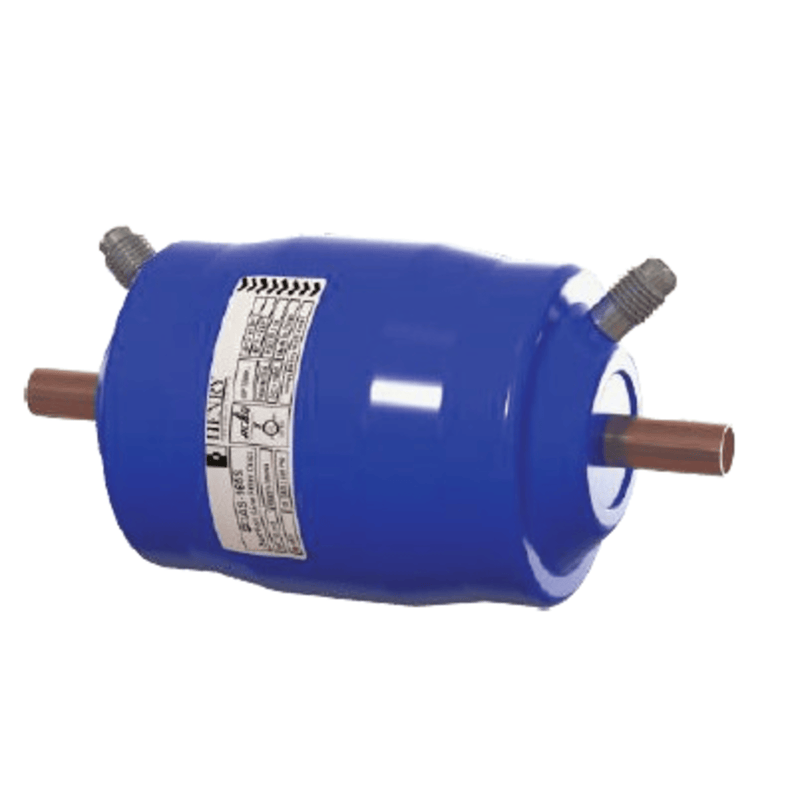

Filter/Drier 3/4 ODS - SDAS-165S, Suction Line - Henry

Here are the specifications for the Henry SDAS-166S Suction Line Filter/Drier:

Product Overview

• Model: SDAS-166S
• Connection Size: 3/4" ODS (Outside Diameter Solder)
• Predecessor: SDAS-165S

Key Features

• Core Composition: 80% Molecular Sieve and 20% Activated Alumina
• Function: Captures and retains moisture, acids, and solid contaminants to protect compressors and system components
• Filtration:
  • Stainless steel mesh and non-woven polyester filter pad
  • Filters solid particles down to 150 microns
• Construction:
  • Shell: Carbon steel with powder coating for corrosion resistance
  • Connections: Solid copper ODS
  • Internal Components: Galvanized steel plates, steel spring, and Schrader valves for pressure monitoring
• Refrigerant Compatibility: Suitable for HCFC, HFC, and CO₂ refrigerants including R-410A
• Operating Range:
  • Pressure: Up to 650 PSI (45 Bar)
  • Temperature: -40°F to +212°F (-40°C to +100°C)
