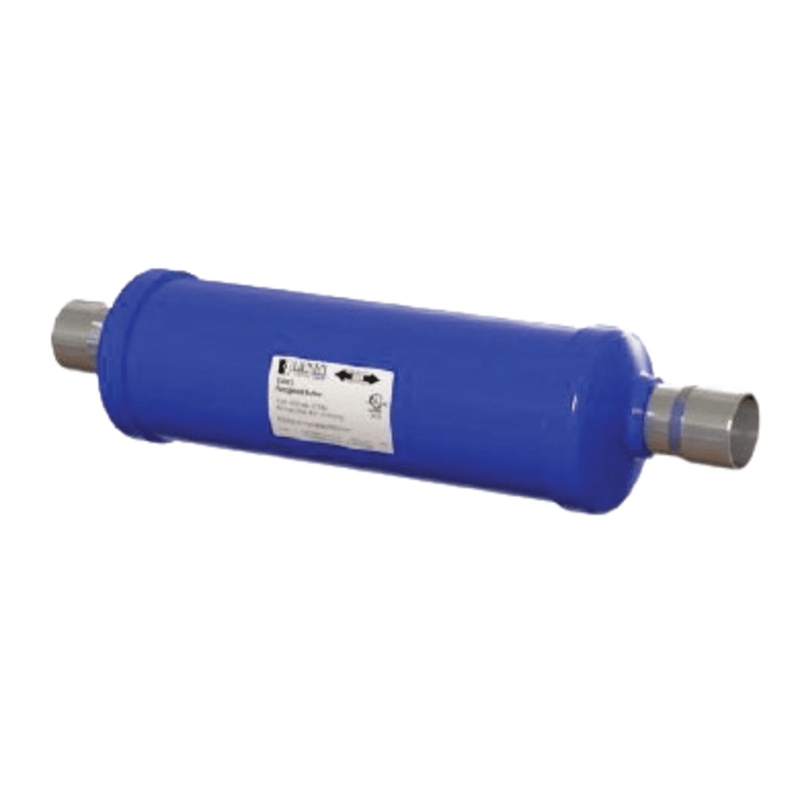

Muffler 7/8 ODS - 22mm - Discharge Line - Henry

The Henry S-6307 Discharge Line Muffler is a compact and efficient solution for reducing noise and pulsation in refrigeration and air-conditioning systems. Here's a detailed overview of its specifications:

Product: Henry S-6307 Discharge Line Muffler

• Connection Size: 7/8" ODS (Outside Diameter Solder)
• Body Diameter: 22 mm (approx. 0.87 inches)
• Length: 9.69 inches
• Weight: 1.1 lbs

Key Features

• Noise & Pulsation Reduction: Internal baffles alter the velocity of discharge gases, effectively dampening high-frequency sound waves and pulsations from both low- and high-speed compressors
• Bi-directional Flow: Allows for flexible installation orientation
• Low Pressure Drop: Designed to maintain system efficiency
• Compact Design: Ideal for tight installation spaces

Technical Specifications

• Maximum Working Pressure: 31 Barg (449.6 PSIg)
• Operating Temperature Range: 0°C to +121°C (+32°F to +249.8°F)
• Refrigerant Compatibility: CO₂, HCFC, HFC, and (for this model) A2L, HC, and HFO refrigerants where material compatibility is ensured
• Certifications: AS2971.2, CE, UKCA, UL207
