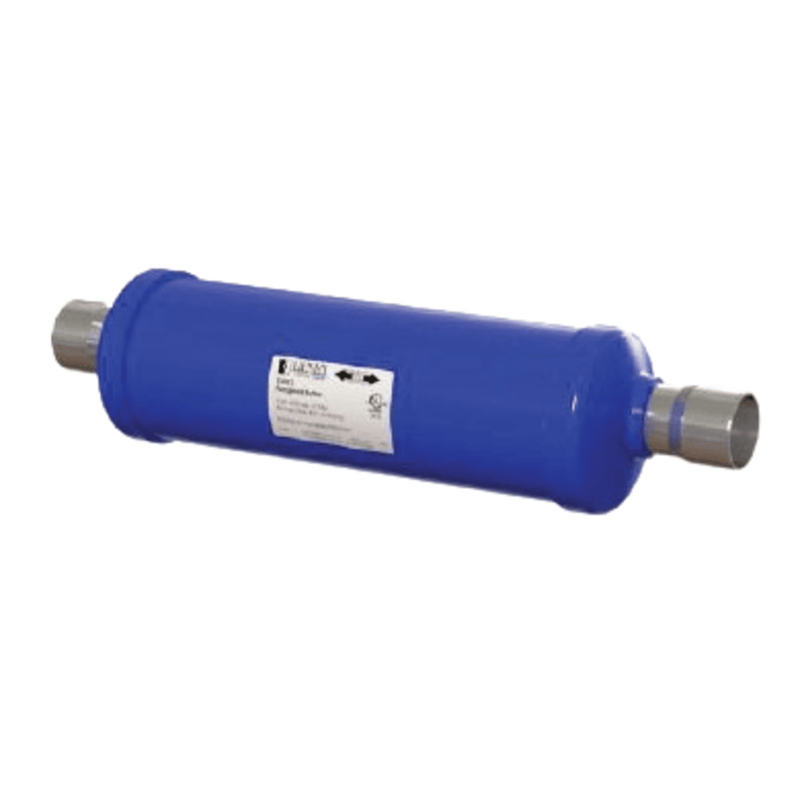

Muffler 1/2 ODS - 13mm - Discharge Line - Henry

The Henry S-6304 Discharge Line Muffler is a compact and efficient solution for reducing noise and pulsation in refrigeration and air-conditioning systems. Here's a detailed overview of its specifications:

Product: Henry S-6304 Discharge Line Muffler

• Connection Size: 1/2" ODS (Outside Diameter Solder)
• Body Diameter: 13 mm (approx. 0.51 inches)
• Weight: Approx. 2.0 lbs

Key Features

• Noise & Pulsation Reduction: Internal baffles change the velocity of discharge gases, dampening high-frequency sound waves and pulsations from both low- and high-speed compressors
• Bi-directional Flow: Allows for flexible installation orientation
• Low Pressure Drop: Special baffle design ensures minimal flow resistance
• Oil Drain Passage: Prevents oil collection when installed correctly
• Powder-Coated Finish: Enhances corrosion resistance
• Construction:
  • Body & Baffles: Carbon steel
  • Connections: Plated carbon steel

Technical Specifications

• Maximum Working Pressure: 3,100 kPa (31 Barg / 449.6 PSIG)
• Operating Temperature Range: 0°C to +120°C (for 1/2" to 7/8" ODS sizes)
• Refrigerant Compatibility: HCFC, HFC, CO₂, and also suitable for A2L, HC, and HFO refrigerants where material compatibility is ensured
• Certifications: AS2971.2, CE, UKCA, UL207
