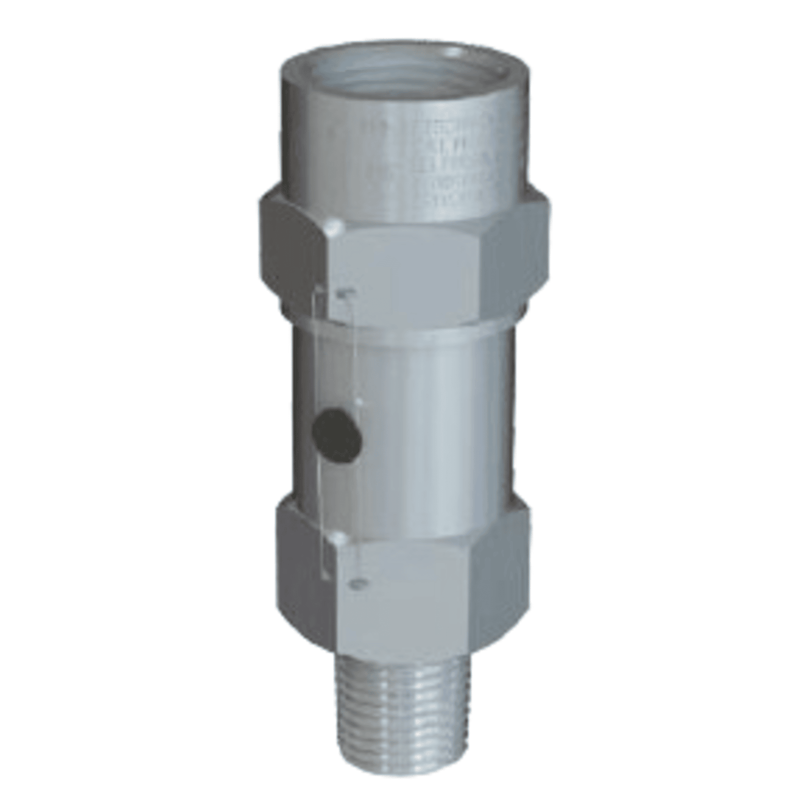

Relief Valve, 1 MPT-1-1/4 FPT - 200 - Stainless Steel Straight-Thru Type - Henry

The Henry 5345-200 Relief Valve is a stainless steel straight-thru type valve designed for use in refrigeration systems to prevent over-pressure due to system malfunction or excessive external heat. Here are its key technical specifications:

• Inlet Connection: 1" Male Pipe Thread (MPT)
• Outlet Connection: 1 1/4" Female Pipe Thread (FPT)
• Body Material: Stainless Steel
• Pressure Rating: 200 psi
• Temperature Rating: -20°F (-28°C) to +160°F (+71°C)
• Seat Material: Teflon or Neoprene
• Certifications: ASME UV-stamped and National Board certified
• Suitable for: Ammonia, HFCs, and CFCs refrigerants, and other industrial fluids non-corrosive to stainless steel and Teflon
• Finish: Protective lacquer finish

This valve is designed to provide reliable pressure relief and is suitable for various industrial applications
