Relief Valve, 1 MPT-1-1/4 FPT - 150 - Stainless Steel Straight-Thru Type - Henry

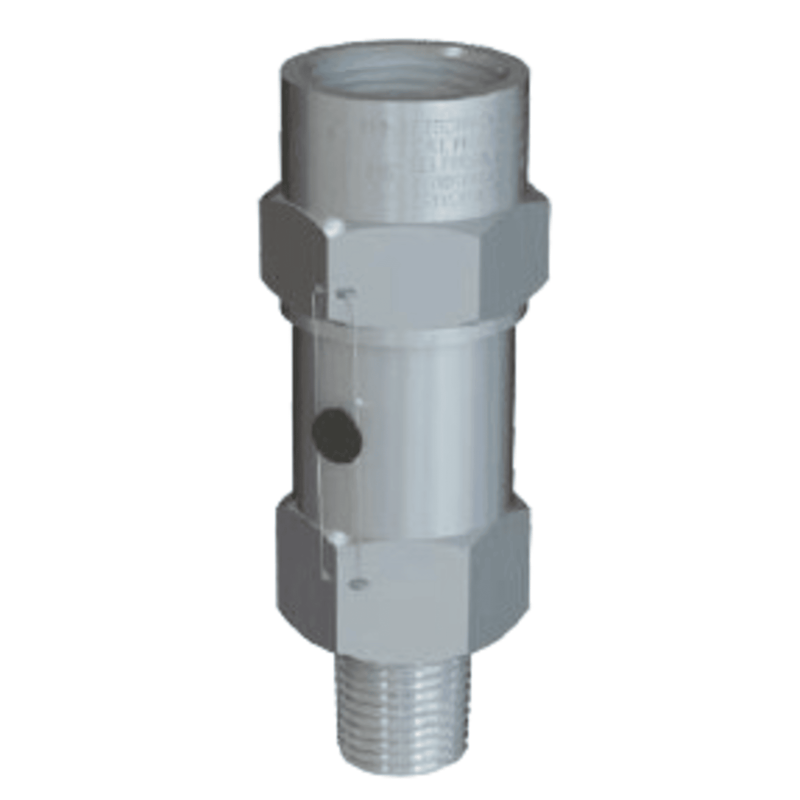

The Henry 5345-150 Relief Valve is a stainless steel, straight-thru type pressure relief valve designed for use in refrigeration systems to prevent over-pressure conditions. Here are the key technical details:

• Model: 5345-150
• Type: Straight-Thru Pressure Relief Valve
• Body Material: Stainless Steel
• Inlet Connection: 1" MPT (Male Pipe Thread)
• Outlet Connection: 1 1/4" FPT (Female Pipe Thread)
• Pressure Setting: 150 PSI
• Temperature Rating: -20°F (-28°C) to +160°F (+71°C)
• Seat Material: Teflon or Neoprene
• Internal Components: Stainless Steel
• Certifications: ASME-UV and National Board (NB) certified

This valve is suitable for use with ammonia, HFCs, CFCs, and other industrial fluids that are non-corrosive to stainless steel and Teflon. It is designed to open at a predetermined pressure to allow gas or vapor to pass through, thereby relieving excess pressure and protecting the system
