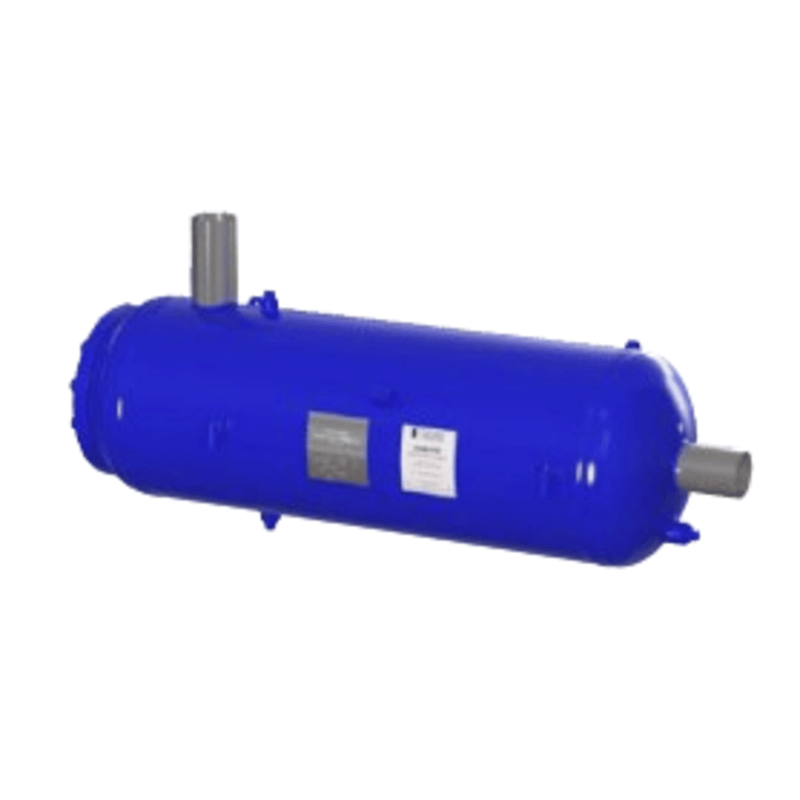

Oil Separator 4 BW - 102mm - Coalescing - Henry

The Henry COSM-205 is a coalescing oil separator designed for high-efficiency oil removal in commercial and industrial refrigeration systems. Here's a detailed overview based on available product specifications:

🔧 Product Overview

• Model: COSM-205
• Manufacturer: Henry Technologies
• Type: Coalescing Oil Separator
• Connection Type: 4" BW (Butt Weld)
• Shell Diameter: 102 mm (4 inches)
• Mounting Orientation: Horizontal or vertical

🛠 Key Features

• Oil Separation Function: Removes oil from discharge gas and returns it to the compressor, helping maintain crankcase oil levels and improving system efficiency.
• Replaceable Filter Element: Allows for easy maintenance and extended service life.
• All-Welded Steel Construction: Built to ASME Section VIII standards for pressure vessels.
• Application Compatibility: Suitable for systems using HCFC, HFC, and CO₂ refrigerants.
• Certifications: ASME Section VIII, CE, UKCA, UL207.

📐 Technical Specifications

• Maximum Working Pressure: Up to 48 Barg (696 PSIg)
• Operating Temperature Range: -10°C to +130°C (14°F to 266°F)
