Shut-Off Valve 5/8 ODS in - 15.875mm - Brass Angle, Standard - Henry
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$410.88
$410.88
-
$410.88
Current price
$410.88
SKU HEN-6475N
Availability:
4-6 weeks

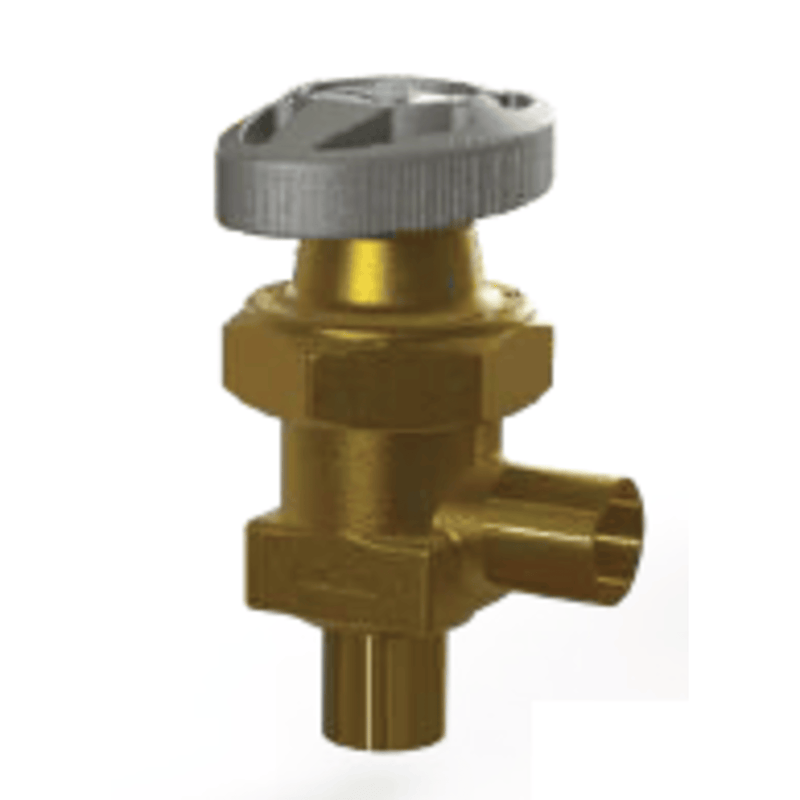

The Henry 6475N is a brass angle shut-off valve designed for standard refrigeration and HVAC applications. Here are the detailed specifications:
🔧 Henry 6475N Specifications
- Model: 6475N
- Connection Size: 5/8" ODS (Outside Diameter Solder)
- Metric Equivalent: 15.875 mm
- Valve Type: Angle shut-off
- Design: Packless diaphragm
- Material: Forged brass
- Connection Type: ODS x ODS (sweat connections)
-
Maximum Operating Pressure:
- Up to 350 PSI (non-directional)
- Up to 500 PSI (directional flow required: inlet under valve seat)
- Maximum Temperature Rating: 275°F (135°C)
- Overall Height: 3.81 inches
- Weight: Approximately 1.19 lbs.
