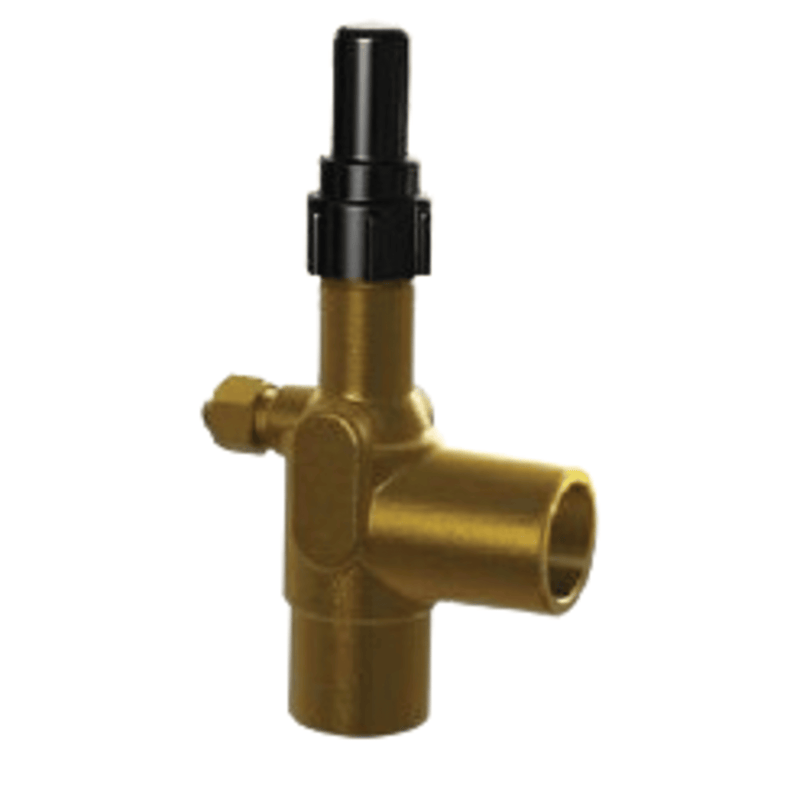

Henry Shut-Off Valve, Brass Seal Cap Angle, 1-3/8" ODS, 34.925mm - 7835

Original price $626.00 - Original price $626.00
Original price
$626.00
$626.00 - $626.00
Current price $626.00
SKU HEN-7835
Availability:
We will Check on Delivery Time and Advise

Here are the key specifications and features for the Henry 7835 Brass Seal Cap Angle Shut-Off Valve:

Technical Specifications

  • Model: 7835
  • Connection Size: 1-3/8" ODS (Outside Diameter Solder), equivalent to 34.925 mm
  • Valve Type: Angle shut-off, packless
  • Seal Cap: Molded plastic over brass
  • Body Material: Forged brass
  • Stem Material: Plated steel
  • Seat Seal: Metal-to-metal
  • Packing Gland: Graphite compound
  • Access Port: 1/4" M flare access port above backseat
  • Backseating: Yes, allows packing replacement while in service

Performance Ratings

  • Maximum Operating Pressure: 500 psi (34.5 bar)
  • Operating Temperature Range: -20°F to +300°F (-29°C to +149°C)

Dimensions & Weight

  • Length: 12.00 in
  • Width: 4.40 in
  • Height: 2.90 in
  • Overall Height: 7.42 in
  • Shipping Weight: ~2.4 lbs

Applications

  • Designed for air conditioning and refrigeration systems
  • Suitable for HCFC and HFC refrigerants and their associated oils
  • Used for isolation, charging, purging, and flow control
Replaces

Superior 192C-13S (similar)
