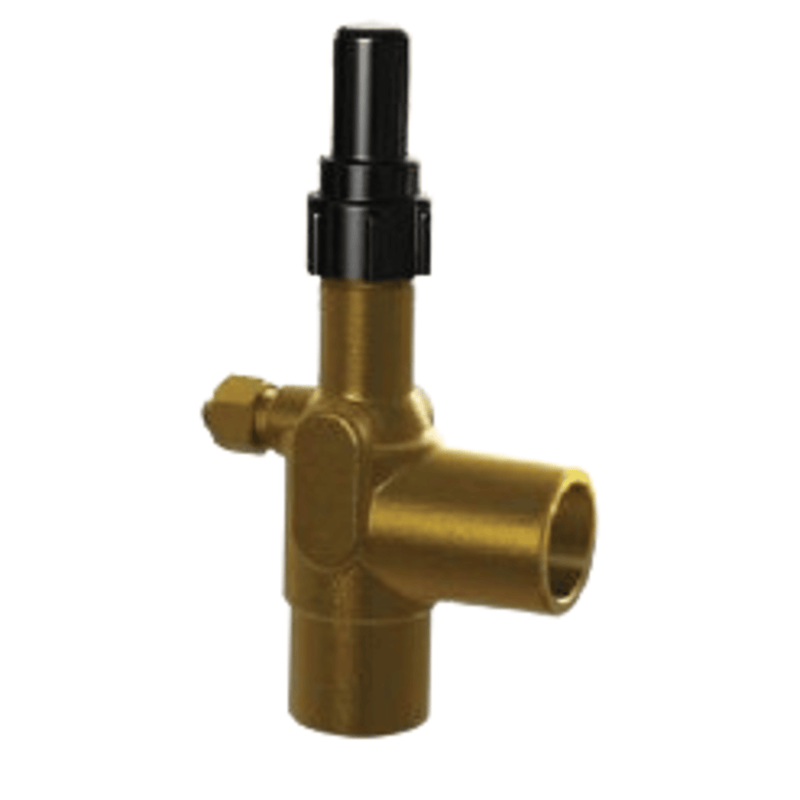

Henry Shut-Off Valve, Brass Seal Cap Angle, 7/8" ODS, 22.225mm - 7833

Original price $531.00 - Original price $531.00
Original price
$531.00
$531.00 - $531.00
Current price $531.00
SKU HEN-7833
Availability:
We will Check on Delivery Time and Advise

Here are the specifications and features for the Henry 7833 Brass Seal Cap Angle Shut-Off Valve:

Technical Specifications

  • Model: 7833
  • Connection Size: 7/8" ODS (Outside Diameter Solder), equivalent to 22.225 mm
  • Valve Type: Angle shut-off, packless
  • Seal Cap: Molded plastic over brass
  • Body Material: Forged brass
  • Stem Material: Plated steel
  • Seat Seal: Metal-to-metal
  • Packing Gland: Graphite compound
  • Access Port: 1/4" M flare access port above backseat
  • Backseating: Yes, allows packing replacement while in service

Performance Ratings

  • Maximum Operating Pressure: 500 psi (34.5 bar)
  • Operating Temperature Range: -20°F to +300°F (-29°C to +149°C)

Dimensions & Weight

  • Length: 5.10 in
  • Width: 4.10 in
  • Height: 2.20 in
  • Overall Height: 5.44 in
  • Shipping Weight: ~1.06 lbs

Applications

  • Used in air conditioning and refrigeration systems
  • Suitable for HCFC and HFC refrigerants and their associated oils
  • Ideal for isolation, charging, purging, and flow control
Replaces

Superior 190C-14S (similar)
