Henry Receiver, 355.6 x 1524.0mm, 2-1/8" ODS in x 1-5/8" ODS out, Vertical ASME - S-8562

Original price $4,303.25 - Original price $4,303.25
Original price
$4,303.25
$4,303.25 - $4,303.25
Current price $4,303.25
SKU HEN-S-8562
Availability:
We will Check on Delivery Time and Advise

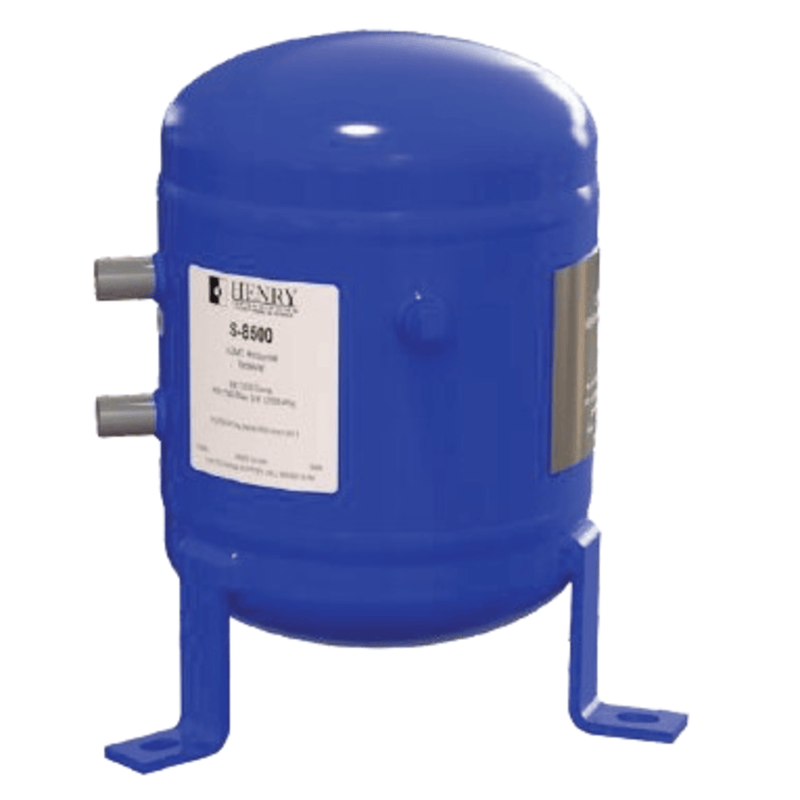

Henry S-8562 Receiver, 355.6 x 1524.0mm, 2-1/8" ODS in x 1-5/8" ODS out, Vertical ASME.

Store liquid refrigerant to provide continuous flow of liquid refrigerant to the expansion device and provide storage for the refrigerant charge during system service or maintenance.

Features

  • Rugged coating for protection
  • Standard NPT PRV port
  • Can be fitted with a choice of isolating valves
  • Mounting legs on all models
  • Can be highly customized to suit application
  • Can be fitted with sight glasses, or ports to fit liquid level switches or probes

Product Details

  • Part Number: S-8562
  • Brand: Henry Technologies
  • Series: Vertical Liquid Refrigerant Receiver (ASME)
  • Category: Pressure Vessels › Liquid Refrigerant Receivers
  • Suitable For: Conventional Refrigerants
  • Max Working Pressure: 31 Barg (449.6 PSIg) up to 130 Bar (1885 PSIg). Consult with Factory
  • Operating Temperature Range: -29˚C to +121˚C (-20°F to +250°F)
  • Refrigerant Compatibility: A2L, CO2, HC, HCFC, HFC, HFO and R717 where materially compatible
  • Sizes Available: Inlet/Outlet Connections from 3/8" up to 2-1/8" with Rotalock valves or as ODS fittings Can be customized with various options Pump down capacities from 7.5 kg up to 225 kg (16 lbs to 500 lbs)
  • Product Certification: ASME
