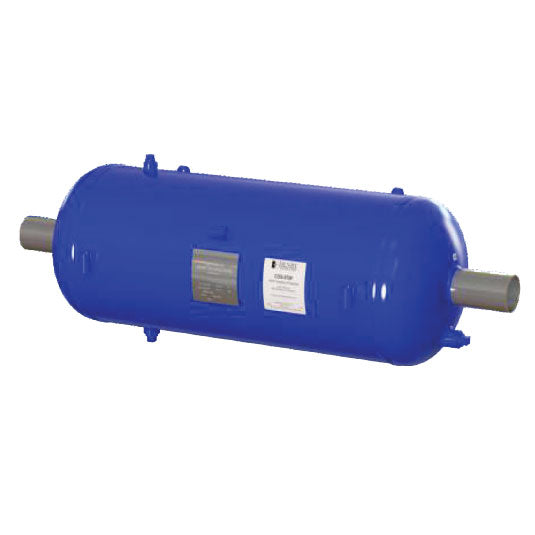

Oil Separator 3" Butt Weld - 76mm - Coalescing - Henry

The COS-140 Henry Coalescing Oil Separator is a high-efficiency, all-welded steel unit designed for industrial refrigeration systems. Here are the key specifications and features:

Product Overview

• Model: COS-140
• Brand: Henry Technologies
• Connection Type: 3" Butt Weld (BW) equivalent to 76mm
• Construction: All-welded steel, built in accordance with ASME Section VIII
• Weight: Approximately 566 lbs (257 kg)
• Mounting: Can be installed horizontally or vertically
• Application: Designed for use in large industrial refrigeration systems

Function

• Removes oil from discharge gas and returns it to the compressor.
• Helps maintain compressor crankcase oil level and improves system efficiency.
• Not a substitute for oil traps or good piping practices

Performance

• Nominal Capacity: 140 DCFM (depending on refrigerant type)
• Compatible Refrigerants: Ammonia (R-717), HCFCs, HFCs, and other non-corrosive industrial fluids

Design Features

• Coalescing element for efficient oil separation
• Optional float valve for oil return control
• Replaceable internal cartridge
• Suitable for reciprocating compressors
