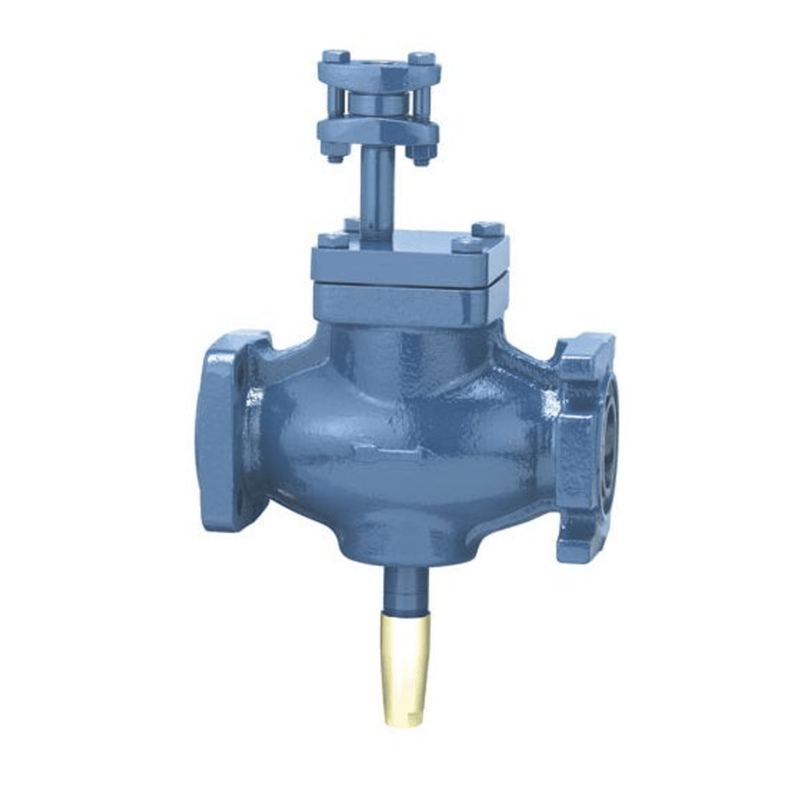

Check Valve 1-1/4 (32MM)4-Bolt, FLNG - Hansen
Call for Availability
Original price
$614.52
-
Original price
$614.52
Original price
$614.52
$614.52
-
$614.52
Current price
$614.52
SKU HAN-HCK4-6
Availability:
Call for Availability
The Hansen HCK4-6 is a 1-1/4" (32mm) 4-bolt flanged in-line check valve, part of the HCK4 series, designed for industrial refrigeration systems. Here's a detailed summary of its specifications and features:
HCK4-6 Check Valve Key Specifications
- Model: HCK4-6
- Port Size: 1-1/4" (32mm)
- Connection Type: 4-bolt flanged
- Body Material: Steel (ASTM A108), zinc chromate plated
- Seat Disc: Stainless steel
- Spring: Stainless steel
-
Safe Working Pressure:
- Standard: 400 psig (27 bar)
- CO₂ Applications: 600 psig (40 bar)
- Operating Temperature: -60°F to +240°F (-50°C to +115°C)
-
Dimensions:
- Width: 9"
- Height: 5"
- Length: 10"
- Weight: ~5 lbs
Features
- Disc-Type Non-Return Valve: Opens fully in the direction of flow and closes quickly when flow reverses.
- Compact and Rugged Design: Ideal for tight spaces and harsh environments.
- Corrosion Resistance: Stainless steel internals and plated body enhance durability.
- Flexible Mounting: Can be installed in any orientation and close-coupled with other valves.
- Application Note: Not recommended for pulsating or partial loads (e.g., compressor discharge); for such cases, Hansen recommends the HCK1 piston-type check valves
