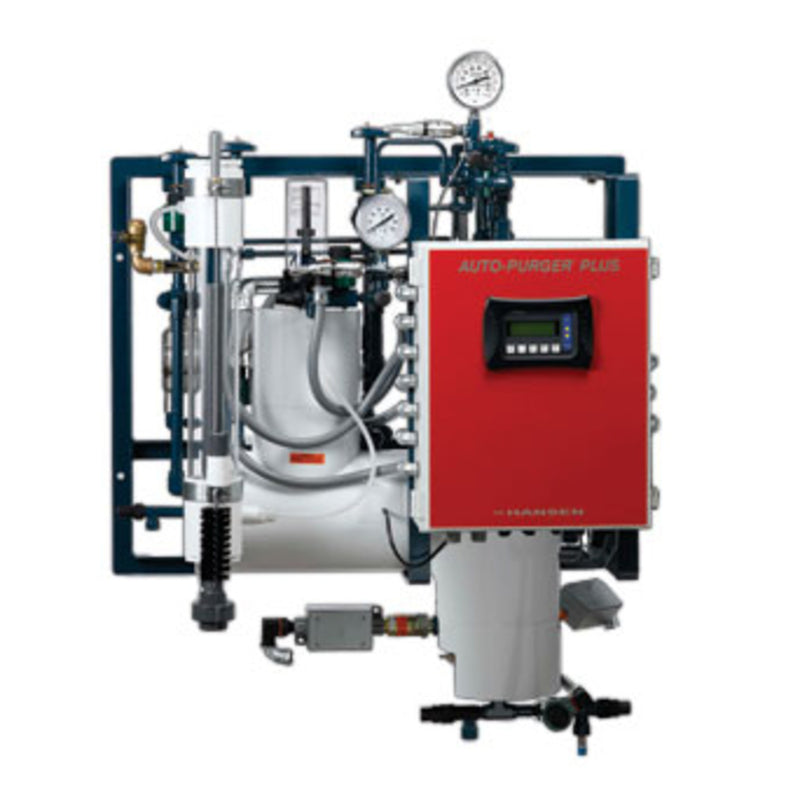

Auto-Purger Plus, 16PTS, NH3, 115V, Air/Water, Touch Screen - Hansen
Call for Availability
Original price
$89,595.86
-
Original price
$89,595.86
Original price
$89,595.86
$89,595.86
$89,595.86
-
$89,595.86
Current price
$89,595.86
SKU HAN-APPT16
Availability:
Call for Availability
The Hansen APPT16 is a high-performance Auto-Purger Plus system designed for ammonia (NH₃) refrigeration systems. Here's a comprehensive overview:
🔧 Product Overview
- Model: APPT16
- Type: Auto-Purger Plus (Air/Water)
- Purge Points: 16
- Refrigerant: NH₃ (Ammonia)
- Voltage: 115V / 60Hz
- Interface: Touch Screen
- Construction: Welded steel, preassembled and pre-wired
- Certifications: CSA certified
⚙️ Key Features
- Fully Automatic: Electronically controlled for air and water purging
- Touch Screen Interface: For easy configuration and monitoring
- Water Bubbler: Automatic, included for safe water purging
- Relief Valve & Isolation Valves: Pre-installed for safety and serviceability
-
Capacity:
- Handles up to 750 tons (2600 kW) at suction pressures below atmospheric
- Up to 1500 tons (5300 kW) at positive suction pressures
-
Water Removal Capacity:
- 1% water: ½ gallon/week
- 5% water: 1 gallon/day
- 10% water: 3 gallons/day
- 20%+: 5 gallons/day
📐 Specifications
- Operating Temperature: -50°F to +240°F (-50°C to +115°C)
- Safe Working Pressure: 400 psig (28 bar)
- Internal Volume: 0.7 cu ft (20 liters)
- Refrigerant Inventory: 0.35 cu ft (10 liters)
- Weight: 410 lbs. (186 kg)
- Mounting: Wall or steel frame (supports 450 lbs.), 8 mounting holes provided
