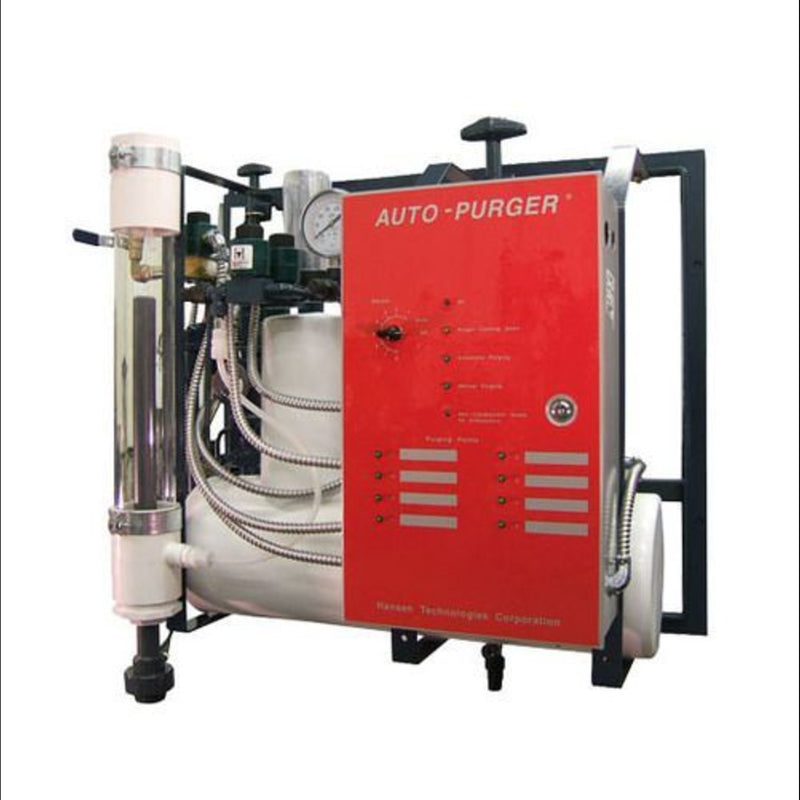

Auto-Purger Deluxe Welded, 8PTS, 115V/60HZ, NH3 - Hansen

The Hansen AP08W is a high-capacity Auto-Purger Deluxe designed for ammonia (NH₃) refrigeration systems. Here's a detailed breakdown:

🔧 Product Overview

• Model: AP08W
• Type: Auto-Purger Deluxe (Welded)
• Purge Points: 8
• Voltage: 115V / 60Hz
• Refrigerant: NH₃ (Ammonia)
• Certification: CSA certified
• Construction: Welded, with optional NEMA 4 rated enclosure for outdoor or high-humidity environments

⚙️ Key Features

• Solid-State Control: Ensures reliable and efficient operation
• Automatic Start-Up: With electronic control for ease of use
• Individually Adjustable Purge Cycles: Tailored to system requirements
• Automatic Water Bubbler: Included for safe and efficient purging
• Capacity: Suitable for systems up to 1500 tons (5300 kW) of ammonia refrigeration
• Air Removal Efficiency: 2 3 times greater than many competitors
  1

  2

📐 Installation Notes

• Mount securely on a wall or steel frame capable of supporting 450 lbs (205 kg)
• Can be installed indoors or outdoors (with NEMA 4 enclosure)
• Avoid placing near moving equipment or in areas with falling/spraying water
