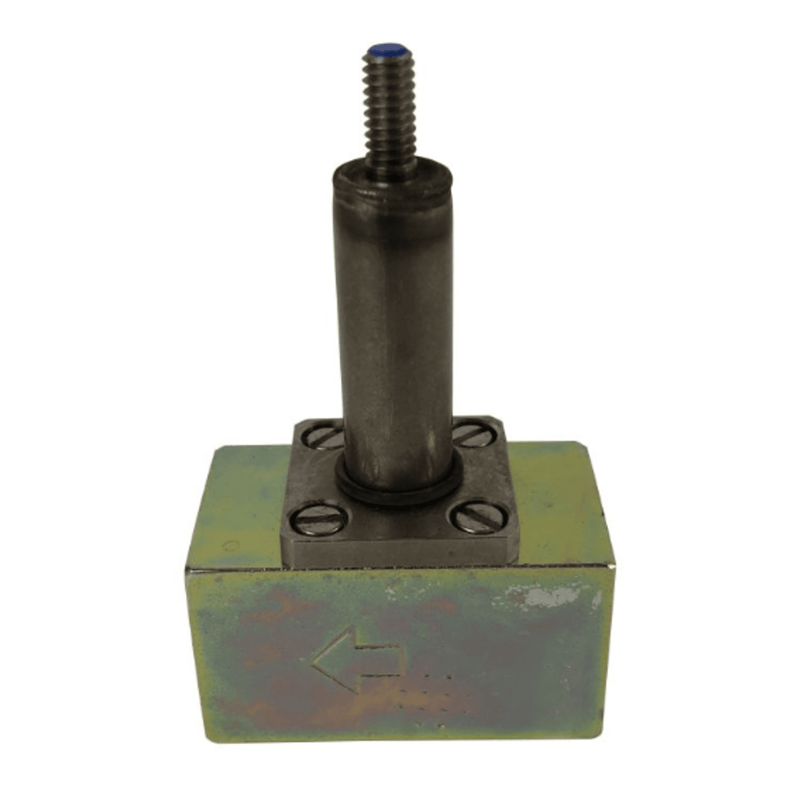

Solenoid Valve 5/32 , Flanged - Hansen
Original price
$361.33
-
Original price
$361.33
Original price
$361.33
$361.33
-
$361.33
Current price
$361.33
SKU HAN-HS2F/1
Availability:
Call for Availability
The Hansen HS2F/1 is a 5/32" (4 mm) flanged solenoid valve designed for industrial refrigeration systems. It is part of the HS2 series, known for compact, rugged, and reliable performance in demanding environments.
Key Specifications
- Model: HS2F/1
- Port Size: 5/32" (4 mm)
- Connection Type: Flanged
- Body Material: Plated steel
- Seat Material: Teflon
-
Safe Working Pressure:
- Standard: 400 psig (27 bar)
- CO₂ Applications: 600 psig (40 bar)
- Operating Temperature: -60°F to +240°F (-50°C to +115°C)
-
Dimensions:
- Width: 6.2"
- Height: 4"
- Length: 7.3"
- Weight: ~2 lbs
Features
- Direct Lift Design: Stainless steel plunger with Teflon seat ensures fast, reliable operation.
- Leak-Tested: Each valve is tested for tightness and reliability.
- Compact and Durable: Ideal for pilot control, liquid feed, defrost gas control, suction shutoff, and purge lines.
-
Electrical Coil Options:
- Standard ½" conduit fitting
- DIN plug
- Junction box
- CSA Certified
- Optional Accessories: Close-coupled strainers, pilot lights
