Relief Valve NH3 Pressure - Hansen

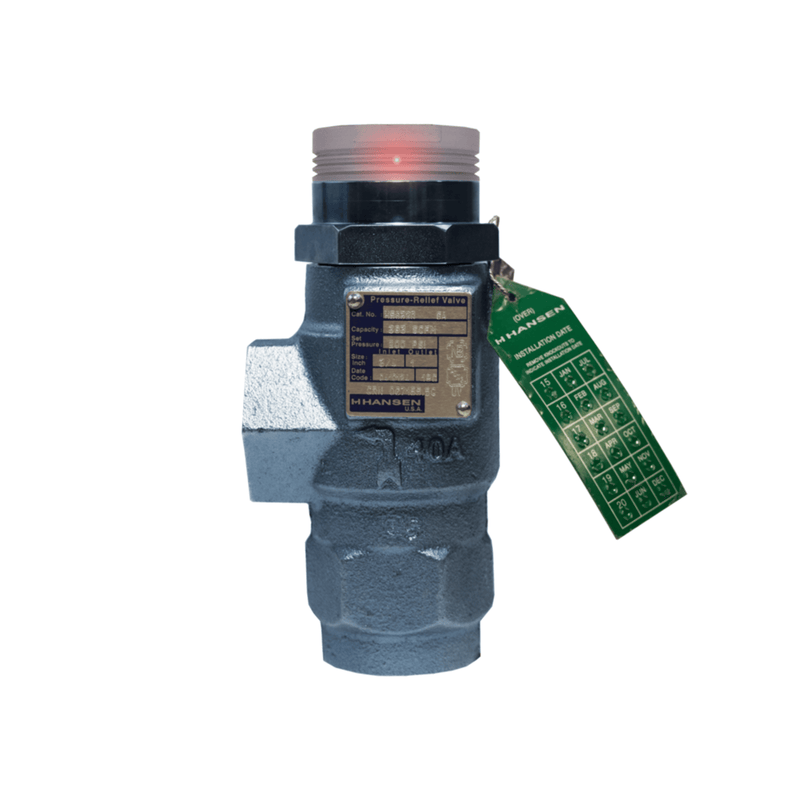

The Hansen H5632R/350-P is a mid-flow, reduced capacity NH₃ (ammonia) pressure relief valve designed for industrial refrigeration systems. It includes Hansen’s POP-EYE™ visual alarm indicator and Anti-Corrosion Technology (ACT) coating.

🔧 Technical Specifications

• Model: H5632R/350-P
• Type: Mid-Flow / Reduced Capacity Pressure Relief Valve
• Inlet/Outlet Size: 3/4" FPT (inlet) x 1" FPT (outlet)
• Set Pressure: 350 PSIG
• Safe Working Pressure: 400 PSIG
• Weight: ~4 lbs

🌟 Key Features

• POP-EYE™ Indicator:

  • Bright LED flashes when valve lifts.
  • 360° visibility.
  • Battery-powered (7+ year life).
  • Blinks for 2+ weeks post-activation.
  • No wiring or calibration required.
  • Not retrofittable to older valves.

• ACT Coating:

  • Multi-layer corrosion protection.
  • Standard on all new Hansen valves.
  • Reduces maintenance and extends service life.

• Construction:

  • Stainless steel insert, piston, and spring.
  • Premium virgin Teflon seat disc.
  • Neoprene O-ring for moisture sealing.
