Relief Valve NH3 Pressure 1/2 x 3/4 - Hansen
Original price
$732.50
-
Original price
$732.50
Original price
$732.50
$732.50
$732.50
-
$732.50
Current price
$732.50
SKU HAN-H5600R/250-P
Availability:
Call for Availability

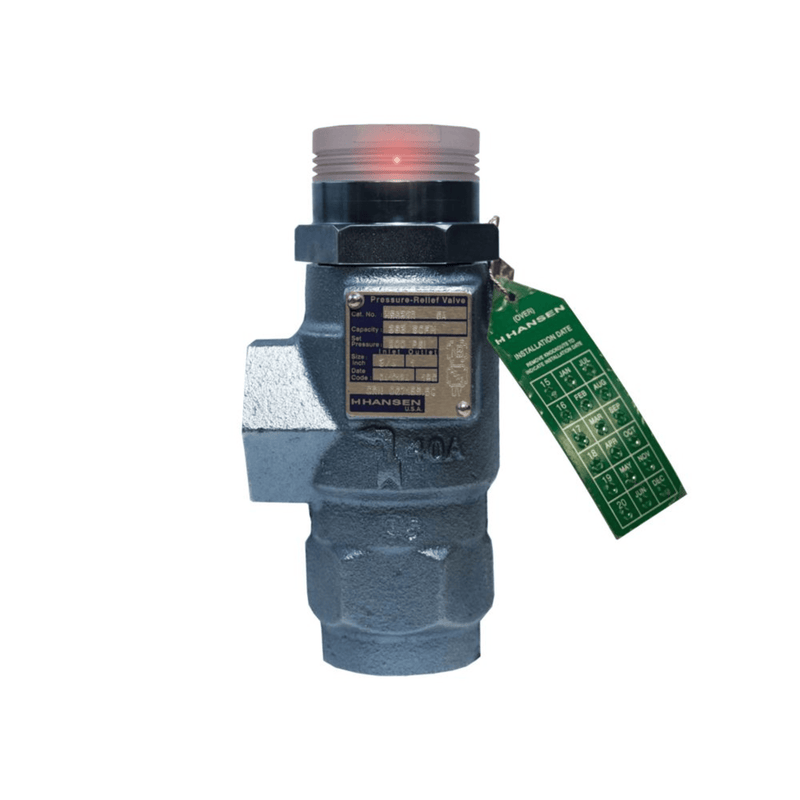

The Hansen H5600R/250-P is a reduced-capacity ammonia (NH₃) pressure relief valve, factory-set to open at 250 PSIG, and designed for use in industrial refrigeration systems. It includes Hansen’s POP-EYE™ visual indicator and features corrosion-resistant construction.
🔧 Key Specifications
- Model: H5600R/250-P
- Type: Reduced Capacity Pressure Relief Valve
- Set Pressure: 250 PSIG
- Inlet/Outlet: 1/2" FPT × 3/4" FPT
- Seat Disc: Premium-grade virgin Teflon
- Internal Components: Stainless steel insert, piston, and spring
- Seal: Neoprene O-ring
- Body Coating: ACT (Anti-Corrosion Technology)
- Weight: Approx. 12 lbs
- Certifications: National Board Certified, CE-CAT.II, MOD.H, EF110 compliant
💡 POP-EYE™ Indicator Features
- Bright LED with 360° visibility
- Blinks for 2+ weeks after valve lifts
- Battery life: 7+ years
- No wiring, setup, or calibration required
- Drop-in replacement for older H56XX models
- Not retrofittable to existing valves
