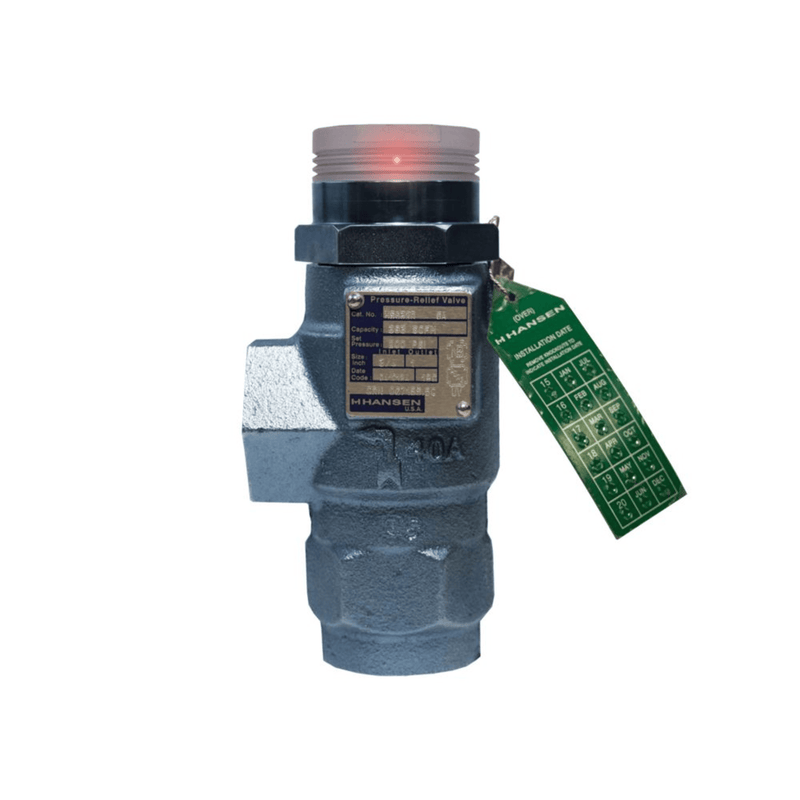

Relief Valve NH3 Pressure 1/2 x 3/4, Set@300 PSIG, POP-EYE - Hansen
Original price
$732.50
-
Original price
$732.50
Original price
$732.50
$732.50
$732.50
-
$732.50
Current price
$732.50
SKU HAN-H5600A/300-P
Availability:
Call for Availability
The Hansen H5600A/300-P is a pressure relief valve designed for ammonia (NH₃) refrigeration systems, featuring the POP-EYE™ self-alarming indicator and factory-set to open at 300 PSIG.
🔧 Key Specifications
- Model: H5600A/300-P
- Inlet/Outlet: 1/2" FPT × 3/4" FPT
- Set Pressure: 300 PSIG
- Pressure Range: 150 400 PSIG (10.4 28 bar)
- Safe Working Pressure: 400 PSIG (28 bar)
- Seat Disc: Premium-grade virgin Teflon
- Internal Components: Stainless steel insert, piston, and spring
- Seal: Neoprene O-ring
- Body Coating: ACT (Anti-Corrosion Technology)
- Weight: ~4 lbs
- Dimensions: 4" W × 4" H × 7" D
💡 POP-EYE™ Indicator Features
- Bright LED with 360° visibility
- Blinks for 2+ weeks after valve lifts
- Battery life: 7+ years
- No wiring, setup, or calibration required
- Drop-in replacement for older H56XX models
- Not retrofittable to existing valves
