Level Liquid Indicator See-, CE-CAT.II, MOD.H, EF110 - Hansen

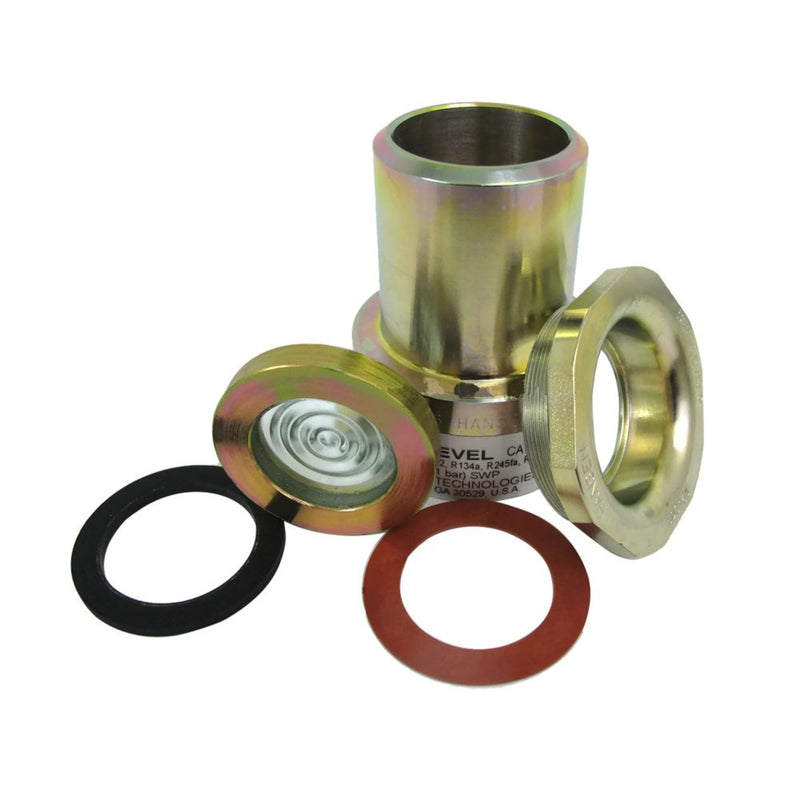

The Hansen H1100-R is a SEE-LEVEL™ liquid indicator designed for industrial and commercial refrigeration systems. It provides a visual indication of liquid levels using a reflex lens, which appears dark when liquid is present and light when vapor is present.

🔧 Key Specifications

• Model: H1100-R
• Lens Type: Reflex (standard); clear lens optional
• Housing Material: Steel, ASME SA36 (ASTM A36), zinc chromate plated
• Lens Material: Soda lime glass, fused in steel retainer ring
• Retainer Ring: Cold rolled steel (ASTM A108), zinc chromate plated
• Seal: Buna-N gaskets
• Certification: CE-CAT.II, MOD.H, EF110
• Operating Temperature: Suitable for use down to -60°F (-50°C) with optional frost shield
• Mounting Options:
  • Fillet weld into 1.94″/2″ diameter opening
  • 1½″ socket weld fitting
  • Butt weld to 1½″ Schedule 80 pipe
