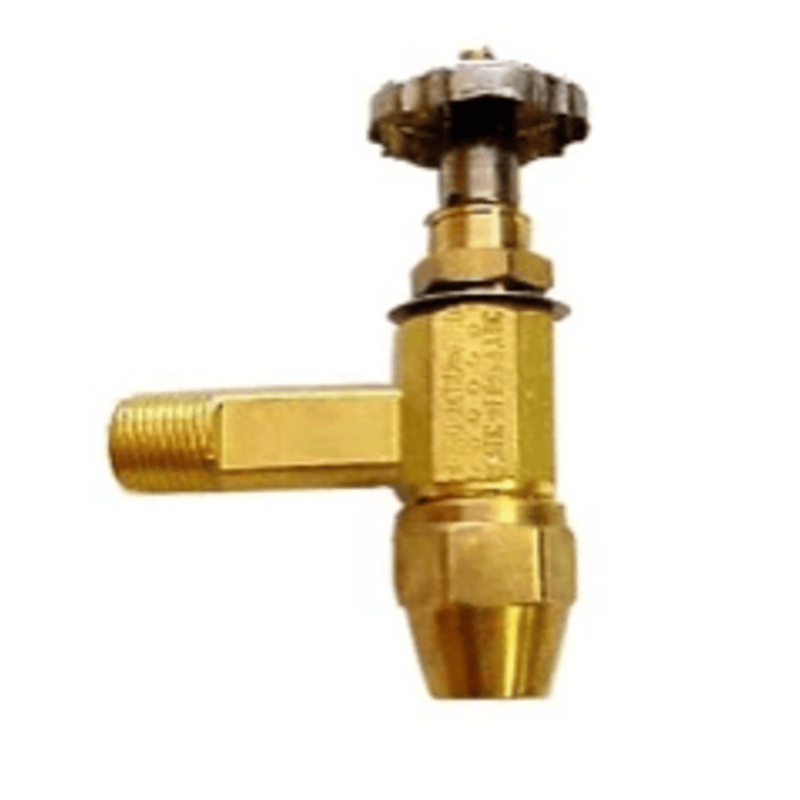

Firomatic Valve Angle Valve 1/2" X 1/4" - Crown

The Crown B200CF Firomatic Angle Valve is a high-quality, fusible fire safety valve designed for use in residential and commercial oil heating systems. Here are the key technical details:

• Material: Constructed from durable brass, ensuring long-lasting performance and resistance to corrosion
• Connection Type: 1/2" NPT (Female) x 1/4" NPT (Female) connections
• Function: Automatically shuts off the flow of oil from the oil tank in the event of a fire, minimizing potential fire damage
• Compliance: Conforms to UL/ULC 842 standards and is listed in both the US and Canada
• Applications: Suitable for use with No. 2 fuel oil, kerosene, and up to 20% biodiesel blend
• Seal System: Features a double seal washer/o-ring system with high-grade Viton equivalent materials
• Identification: Embossed with the direction of oil flow and includes a unique part number identification ring

This valve is essential for ensuring safety and compliance in oil heating installations, as required by NFPA 31
