Igniter/ECLIPSE 14265-2 (12") REPL (EA) - Crown

⚡ CA541 Crown Igniter Replaces Eclipse 14265-2 (12-Inch)

Mid-Length Ignition for Industrial Burner Systems

The Crown CA541 Igniter is a direct replacement for Eclipse 14265-2 and Auburn 3FR SPECIAL, designed for industrial combustion systems requiring a 12-inch reach. Built with high-temperature materials and precision threading, this igniter ensures consistent, high-voltage ignition in oil and gas-fired burners.

✅ Key Features:

• 12-Inch Tip Length: Ideal for mid-depth burner chambers and standard industrial applications.
• Direct Replacement: Fully compatible with Eclipse 14265-2 and Auburn 3FR SPECIAL models.
• High-Temperature Ceramic: Constructed from 95% alumina for durability up to 2700°F.
• Rigid Electrode: Made from Kanthal D alloy for long-lasting spark performance.
• Threaded Mounting: 3/4"-14 NPT thread for secure and universal installation.

📊 Technical Specs:

• Product Code: CA541
• Replaces: Eclipse 14265-2, Auburn 3FR SPECIAL

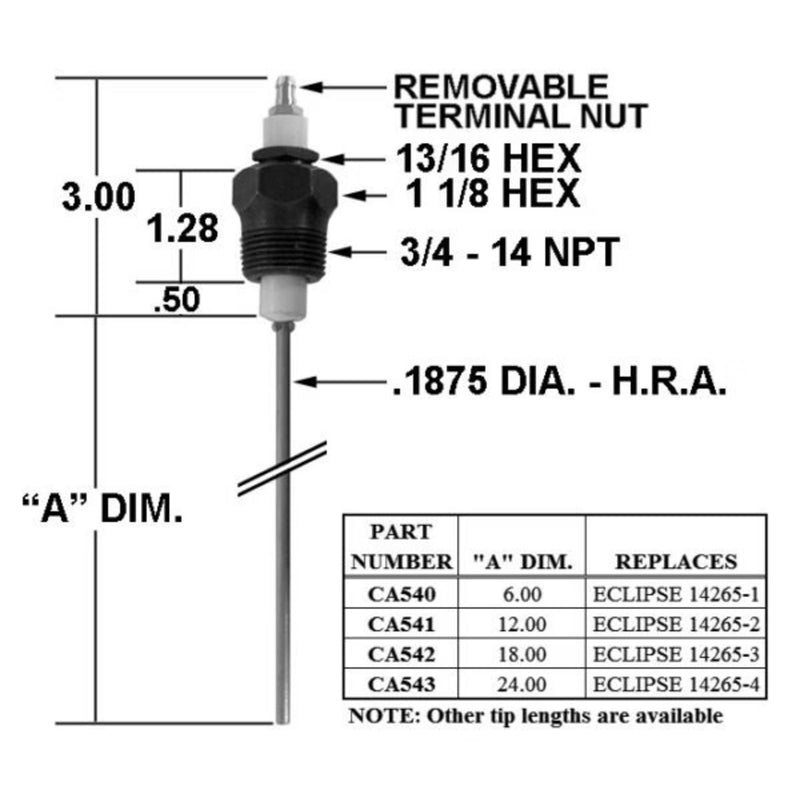

• Tip Length (B-Dimension): 12 inches
• Overall Length (A-Dimension): Approx. 15.03 inches
• Thread Size: 3/4"-14 NPT
• Material: 95% alumina ceramic, Kanthal D electrode
• Temperature Rating: Up to 2700°F
• Mounting: Threaded

🛠 Ideal For:

• Industrial gas and oil burners
• High-temperature combustion systems
• OEM and retrofit burner applications
• Maintenance and repair operations

💡 Pro Tip:

Always confirm thread compatibility and insertion depth before installation. Use dielectric grease on terminals to prevent corrosion and ensure optimal conductivity in high-heat environments.
