⚡ CA533 Crown Igniter Replaces Eclipse 12392-2 & Auburn I-34-54

Extra-Long Ignition for Industrial Burners

The Crown CA533 Igniter is a high-performance replacement for both Eclipse 12392-2 and Auburn I-34-54, designed for deep-set industrial burner applications. With a 54-inch tip length, this igniter delivers reliable high-voltage ignition in high-temperature combustion environments.

✅ Key Features:

• 54-Inch Tip Length: Ideal for extended-reach burner assemblies and large combustion chambers.
• Dual Compatibility: Replaces both Eclipse 12392-2 and Auburn I-34-54, simplifying inventory and service.
• High-Temperature Ceramic: Made from 95% pure alumina, rated up to 2700°F for extreme durability.
• Rigid Electrode: Constructed from Kanthal D alloy for consistent spark performance and long life.
• Threaded Mounting: 3/4"-14 NPT thread for secure installation in industrial burner systems.

📊 Technical Specs:

• Product Code: CA533
• Replaces: Eclipse 12392-2, Auburn I-34-54

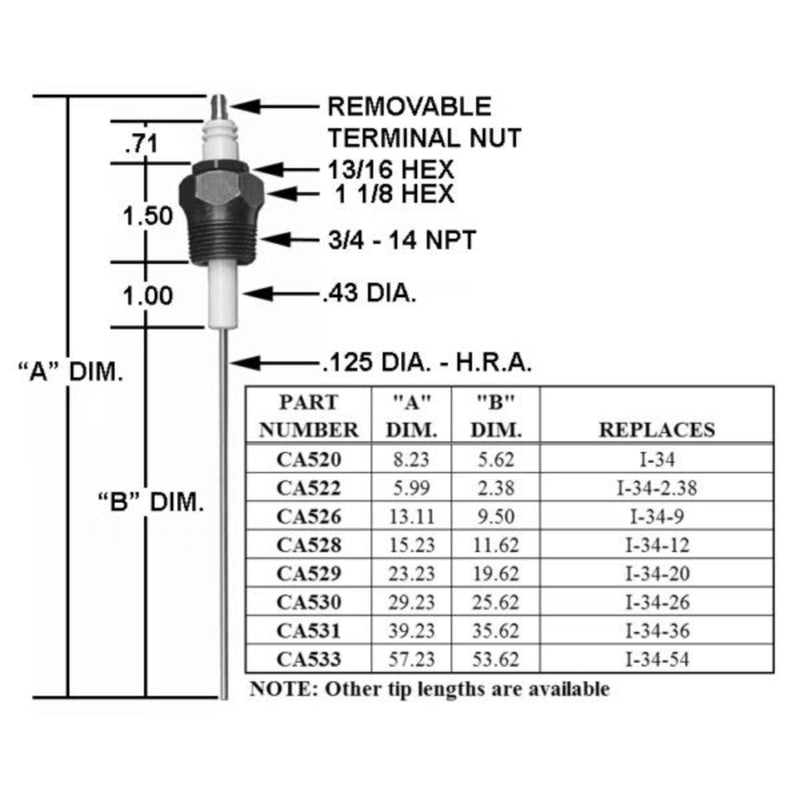

• Tip Length (B-Dimension): 54 inches
• Thread Size: 3/4"-14 NPT
• Material: 95% alumina ceramic, Kanthal D electrode
• Temperature Rating: Up to 2700°F
• Mounting: Threaded

🛠 Ideal For:

• Industrial gas and oil burners
• High-temperature combustion systems
• OEM and retrofit burner applications
• Maintenance and repair operations

💡 Pro Tip:

Always verify thread compatibility and insertion depth before installation. Use dielectric grease on terminals to prevent corrosion and ensure optimal conductivity in high-heat environments.
