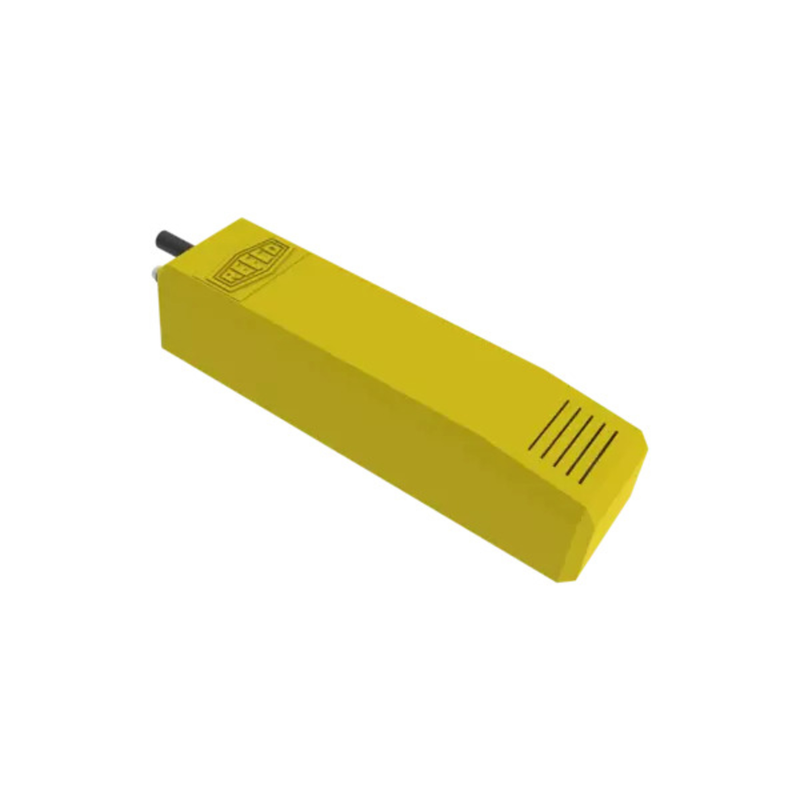

Condensate pump KAROO, - Refco

Here are the full specifications and features of the Refco KAROO Condensate Pump (Part No. 4678512):

Product Overview

• Model: KAROO
• Part Number: 4678512
• Type: Submersible condensate removal pump
• Application: Designed for use in condensate trays of:
  • Refrigerated cases
  • Dehumidifiers
  • Fan coils
  • Air conditioning systems

Technical Specifications

• Power Supply: 120/240 V, 50/60 Hz (auto sensing)
• Power Consumption:
  • Max: 16 W
  • Idle: 0.25 W
• Pump Capacity: 3.17 US gal/h
• Suction Height: 3.28 ft
• Discharge Head:
  • Vertical: 65 ft
  • Horizontal: >328 ft
• Alarm Relay: 5 A, 30 VDC / 250 VAC (break on fault)
• Operating Temperature:
  • Ambient: 32 °F to 104 °F
  • Water: 37 °F to 77 °F
• Material: Flame-retardant ABS (UL94 5 VA)
• Dimensions: 6.3" × 1.7" × 1.3"
• Discharge Tube: 1/4" ID (6 mm)
• Ingress Protection: IP68 (fully submersible)
• Protection Class: I
• Certifications: CE, RoHS, ISO 9001 / 14001

Key Features

• Electronic Energy Control System (EECS):
  • Smooth start
  • Triggers pump and alarm
  • Prevents float-related blockages
• Encapsulated Electronics: Moisture-resistant
• Quiet Operation: Ideal for residential and commercial use
• Built-in Filter & Backstop: Prevents debris entry and backflow
