C&D - braze-on self-piercing copper saddle valve for 3/4" tube 2PK - CD5534/2

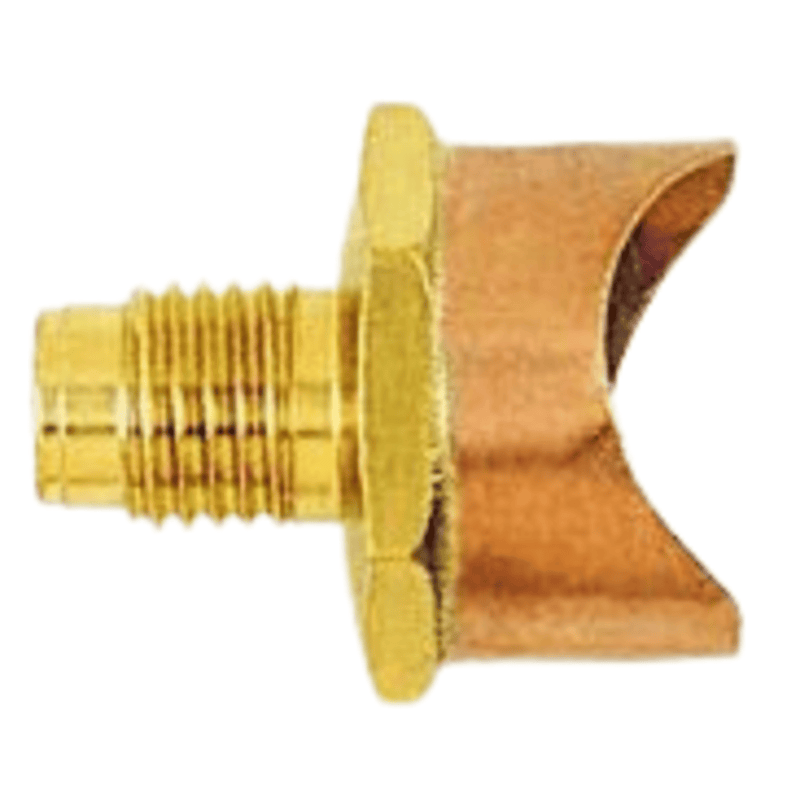

C&D CD5534 Copper saddle for 3/4” line.
The M Series is the first and best braze-on, self-piercing copper saddle valve. It is widely used and easily installed on a charged line. After brazing the saddle portion onto line, the steel pin with valve core penetrates the line and is locked into place simply by tightening the cap. Available in sizes ranging from 1/4” to 1-1/8”.
Product Details
- Part Number: CD5534
- Brand: C&D
- Line size: 3/4”
- Pack Size: 2
Instructions: 1. Prepare line and clean tube. Remove cap and pin. Flux or solder paste saddle and install on line. Heat and braze copper saddle. 2. Let cool and pressure test braze, if desired. Insert pin with PTFE o-ring into body. Put on cap and tighten with wrench on body to avoid breaking braze joint. As cap is tightened, steel pin penetrates tubing. 3. Last turn crimps brass edge over top of pin for secure fit and forming flared end. Remove cap, and fitting is ready to use. If complete penetration is not made, put cap back on and tighten further. 4. When work is complete, replace cap, wrench tight for permanent use or install new cap with neoprene o-ring, thumb tight.
