C&D - 1/4" m. flare access body, CD2250 6PK - CD3600/6

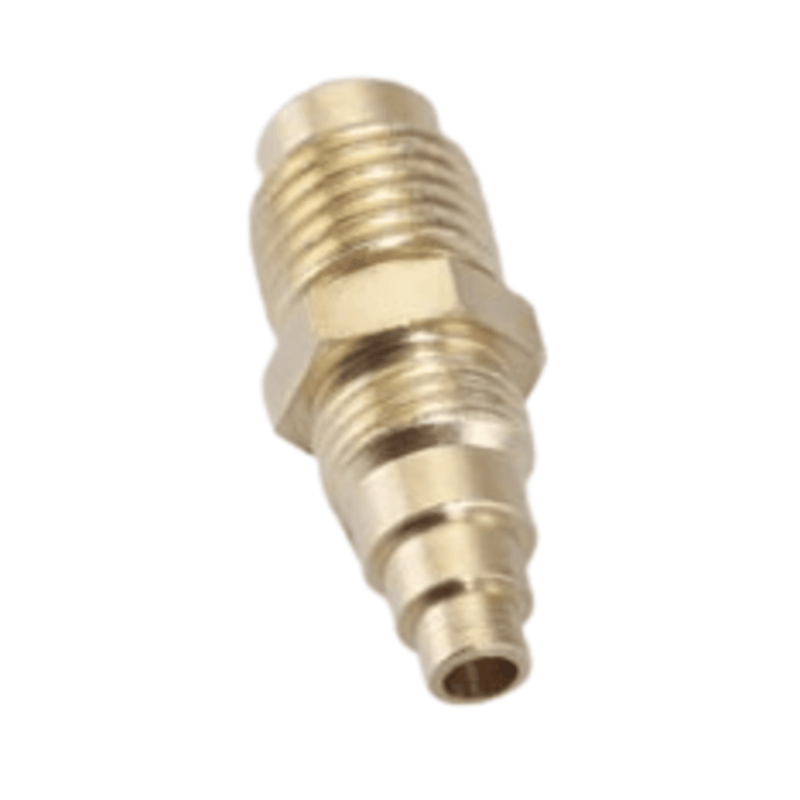

C&D CD3600 1/8” ID, 3/16”, 1/4”, 5/16” steps 1/8” MPT below hex wrench cap and core.
The T 36 Series comes with a CD2250 wrench cap, CD4460 valve core and is available in a variety of tube sizes. There are 1/8” male pipe threads below the hex. Material is CDA 360 brass and standard refrigeration tubing. C&D Valve manufactures brass bodies for a variety of special purposes. They are stock items and indicate the versatility of our parts. Most have the standard 1/4” male flare above the hex. Below the hex are various threads, outside diameters and inside diameters for accepting different sizes of tubing and connections. Many have multiple steps. The CD2245 cap and CD4460 valve core are standard with each, except where noted or when the customer specifies differently. ID and OD measurements given are actual part dimensions.
Features
- The wrench cap is standard
- 1/8” pipe thread below the hex is standard on all but the CD3456—allows securing to a bulkhead with a lock nut
- Extra bushings included with several items to provide a choice on size of hole to cut at the job and reduce the amount of inventory to be maintained
Product Details
- Part Number: CD3600
- Brand: C&D
- Pack Size: 6
CD3600 valve can be adapted to serve you in the following ways: 1/8” copper tube; 1/4” copper tube; 5/16” copper tube; 3/8” copper tube; 1/2” copper tube; braze 3/16” tip into 1/4” line or larger
