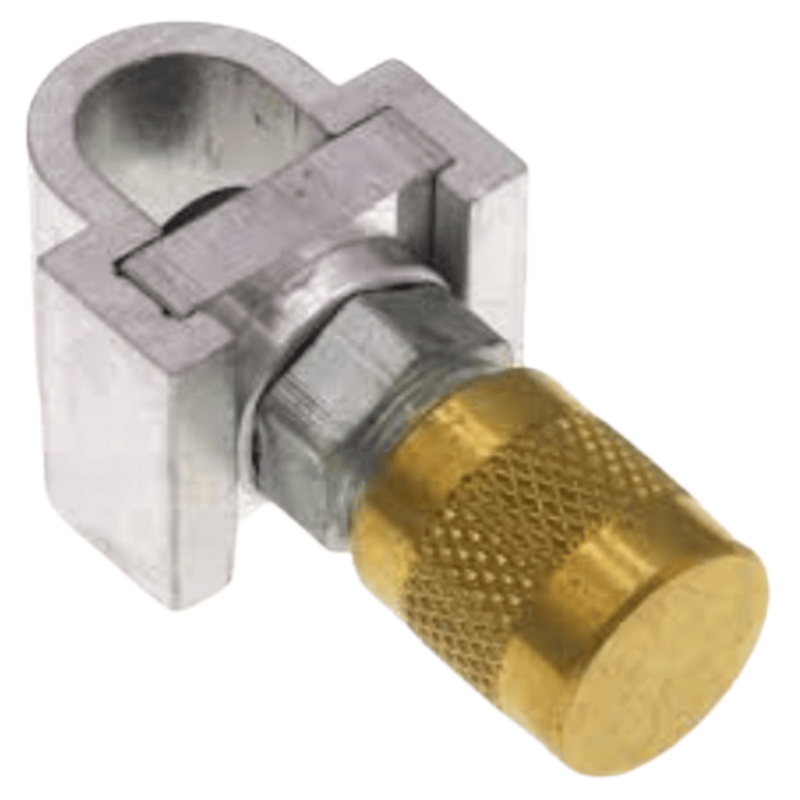

C&D - self-piercing line tap for 5/8" copper tube, CD2245 cap and valve core 2PK - CD2580/2

C&D CD2580 For 5/8” (16 mm) lines.

A line tap valve that is easy to use. Five individual sizes for special access jobs. Viton® gasket for heat extremes.

Product Details

• Part Number: CD2580
• Brand: C&D
• Line size: 5/8” (16 mm)
• Pack Size: 2

Instructions: 1. Place aluminum channel on line. Insert aluminum slide into grooves on channel 2. Grip slide and channel with pliers. Place steel pin in body and screw into place 3. Holding grip on channel and slides, tighten steel housing – Unique torque action provides permanent clamp 4. Continue to tighten steel housing – Neoprene gasket on pin gives long-life seal

Tech tip: Clamp-on line tap valves are a quick and economical way to temporarily access a refrigerant system. After using line tap valves, installing a permanent access tee is recommended.
